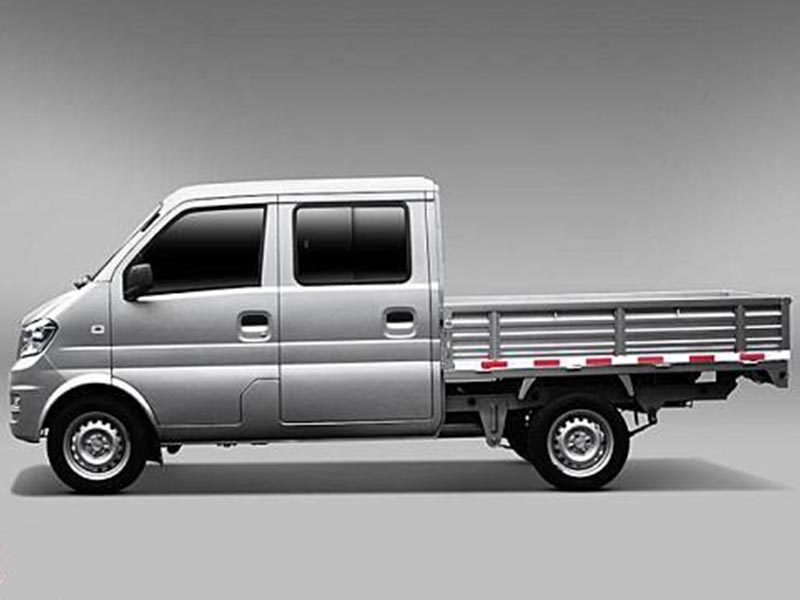

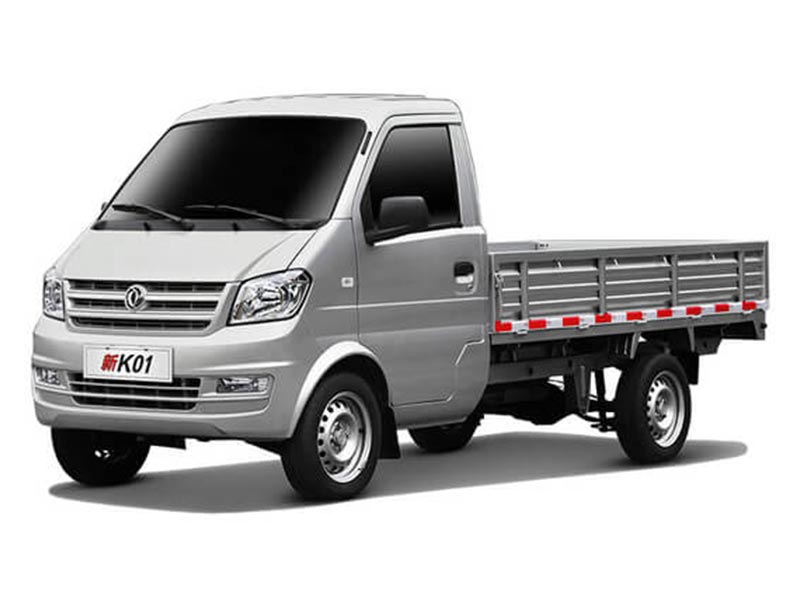

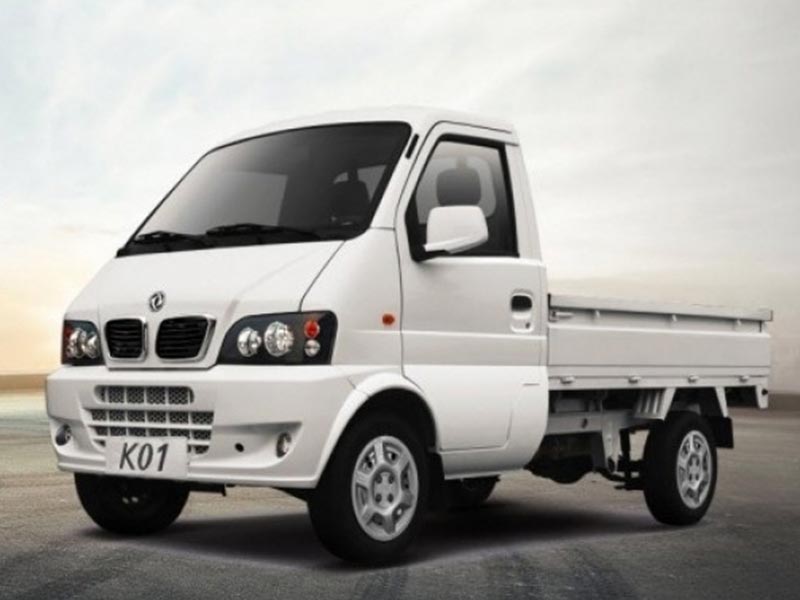

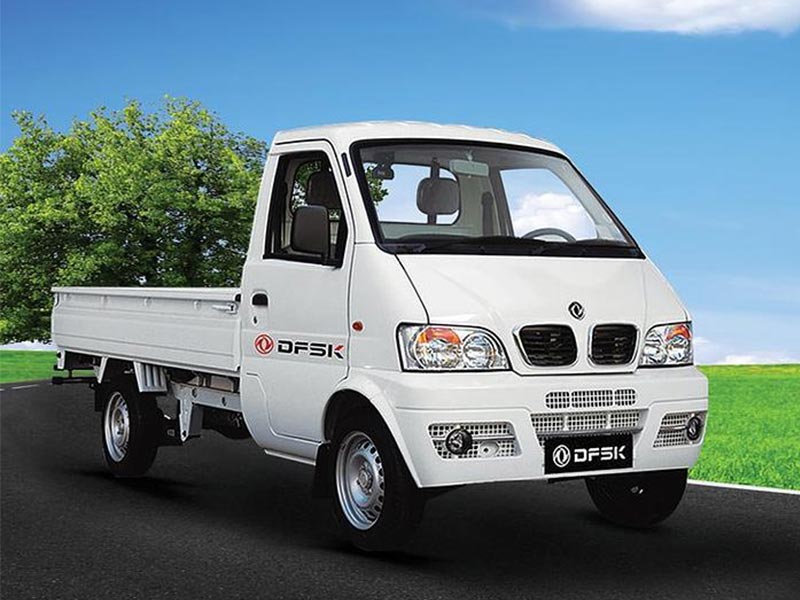

Dongfeng Xiaokang K01 Mini Truck
- Cargo box dimensions (mm):2700*1440*370 (2.7m box); 2300x1440x370 (2.3m box)
- Engine model:AF11-05
- Emission Standards:Euro V
- Axle load (kg):925/995 (2.7m box)
- Engine displacement (L):1.050
Dongfeng Xiaokang K01 is a versatile and reliable mini cargo truck. Its small size makes it ideal for urban freight transport, while also being able to carry a lot of cargo. Its outstanding performance, fuel economy, and affordable price make it ideal for small business owners.
|
Main Specifications
|
|
Outline size(mm)
|
4435*1560*1830 (2.7m box body)
|
|
Cargo box dimensions (mm)
|
2700*1440*370 (2.7m box); 2300x1440x370 (2.3m box)
|
|
Loading by 40ft Container
|
4 units/40HQ(2.7m box); 5 untis/40HQ(2.3m box)
|
|
Engine model
|
AF11-05
|
|
Form
|
Inline four-cylinder, four-stroke, water-cooled, single overhead camshaft, multi-spherical combustion chamber, electronically
controlled fuel multi-point sequential injection
|
|
Front suspension type
|
McPherson independent suspension
|
Engine displacement (L)
|
1.050
|
|
Rear suspension type
|
5 leaf spring type non-independent suspension / 6 leaf spring type non-independent suspension
|
Emission Standards
|
Euro V
|
|
Steering assist type
|
Mechanical steering / electric power steering
|
Maximum speed (km/h)
|
110
|
|
Tire specifications
|
165/70R14 / 165R13LT
|
Comprehensive fuel consumption (L/100km)
|
7.1
|
|
Drive mode
|
Central rear drive
|
Intake form
|
|
|
Wheelbase (mm)
|
2760 (2.7m box)
|
Compression ratio
|
9.5:1
|
|
Front/rear track (mm)
|
1310/1310
|
Bore diameter * stroke (mm * mm)
|
65.5×78
|
|
Front overhang / rear overhang (mm)
|
590/1085 (2.7m box)
|
Rated power (kw/rpm)
|
45±2.25/5200±30
|
|
Minimum turning diameter (m)
|
10.3
|
Maximum net power (kw/rpm)
|
43/5200±30
|
|
Total mass (kg)
|
1920 (2.7m box)
|
Maximum torque (nm/rpm)
|
91±4.55/3000～3500
|
|
Curing quality (kg)
|
910 (2.7m box)
|
Gearbox type
|
MT
|
|
Rated load mass (kg)
|
910 (2.7m box)
|
Number of gears
|
5F+1R
|
|
Axle load (kg)
|
925/995 (2.7m box)
|
/
|
|
Tank volume (L)
|
40
|
|
Rated occupant (person)
|
2
|
|
Color
|
white,silver,gray
|
