  • DFME 760-9A sugarcane and wood loader

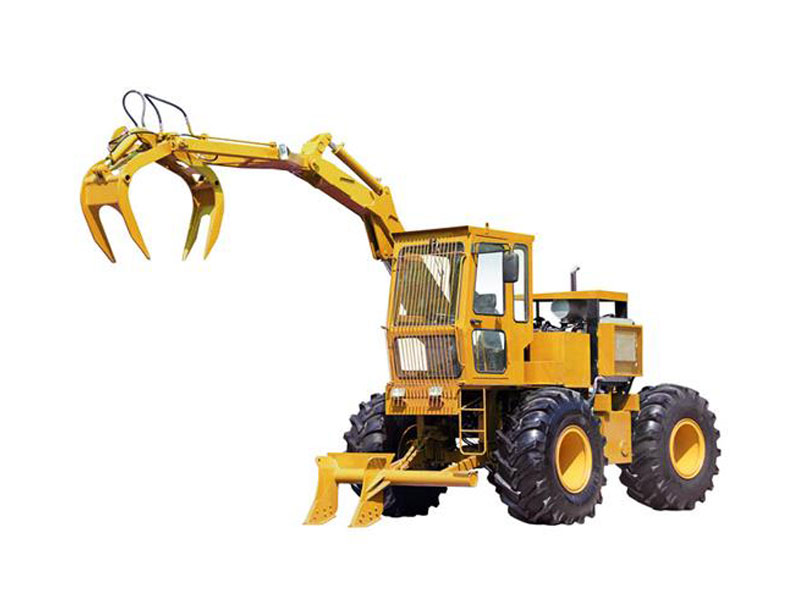

DFME 760-9A sugarcane and wood loader

  • Operation Weight:7600KG
  • Grab and Load weight:1000KG
  • Brand of Engine:Cummins
  • Model:4BTA3.9-C100
  • Rated Power:74KW
  • Features
  • Technical Data
  • Inquiry

Working table, water temperature, oil temperature, current, and work timing are all in sight.
Famous brand hydraulic components are adopted,Cummins engine of which the operating life is long,and the power is driving and the operating speed is fast.
The moving arm can rotate 110°,can heaping while walking, front sugarcane grab can meet side loading, working efficiency can be improved to great degree.
Hydraulic walking, with the completion of the various operating actions scaffold, improve efficiency, each machine can save much labor force.

Operation weight 7600KG
Grab and Load weight 1000KG
Brand of Engine Cummins
Model 4BTA3.9-C100
Rated Power 74KW
Walking Speed ≤30KM/H
Swing Angle of boom 110°
Hydraulic System Pressure 20MPA
Hydraulic System Flux 63/32/32ml/r
Max. Height of Snatch 5400mm
Max. Dumping Height 5300mm
Max. Grabbing Radius 5300mm
Total Length 4900mm (walking)
Total Width 2600mm
Height of the Cab 3100mm
Wheelbase 2000mm
Ground Clearance 580mm
Opened Width of Grasping 1500mm
