DFD5254GJB 9CBM concrete mixer truck
- Model:Yuchi 300hp
- Max. power(Kw):220
- Displacement(ml):9839
- Type of fuel:Diesel
- Size:10.00R20

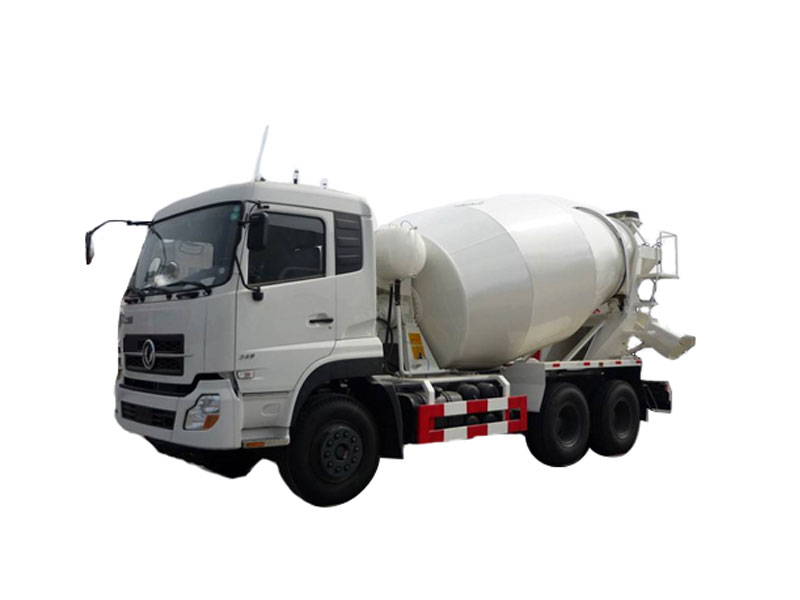

Dongfeng DFD5254GJB 9 m³ concrete mixer truck
Main Feature:
Mixing Volume: 9m³
Chassis: Dongfeng chassis
Engine: Yuchai 300hp engine
Hydraulic pump, motor: Rexroth or Eaton
| Specification |
| Drive mode |
6×4 |
| Chassis model |
DFD1254GJ2 |
| Engine |
Model |
Yuchi 300hp |
| Max. power(Kw) |
220 |
| Displacement(ml) |
9839 |
| Type of fuel |
Diesel |
| |
Emission Standard |
Ⅲ |
| Gearbox |
Fast 9 gears |
|
| Tyre |
Size |
10.00R20 |
| Air conditioner |
A/C |
| Dimensions |
Overall dimension (mm) |
8910,9200,9650×2500×3760 |
| Wheel base (mm) |
3650+1350 |
| Front/Rear tread(mm) |
1989/1860/1860 |
| Front/Rear axle(T) |
7T/10T/10T |
| Appr./Depa. angel (°) |
30/28,30/27,30/26 |
| Min. ground cleanrance(mm) |
520mm |
| Mass |
Payload(Kg) |
12990 |
| Curb weight(Kg) |
11815 |
| G.V.W(Kg) |
25000 |
| Special function |
Mixing capacity(m³) |
8 |
| Material of tanker |
Q345 |
| Reducer |
Italy PMP |
| Hydraulic pump |
Italy PMP |
| Hydraulic motor |
Italy PMP |
