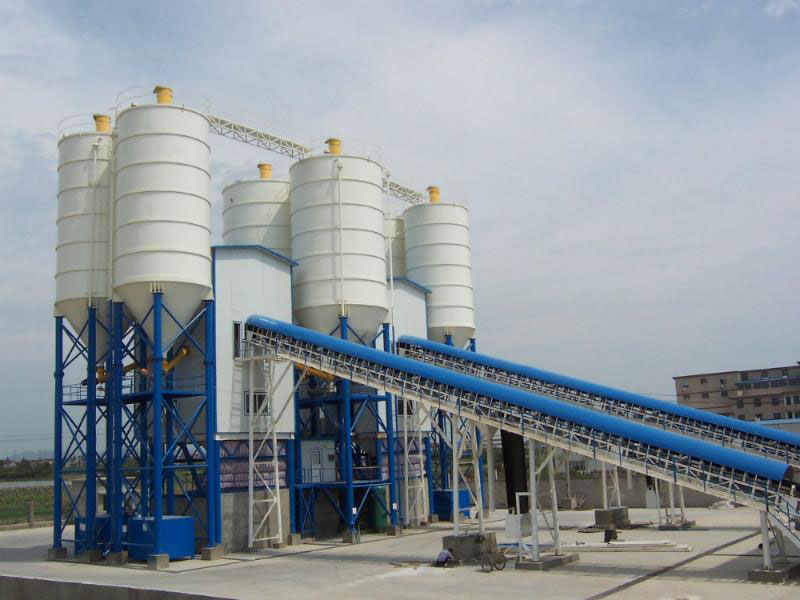

HZS120 concrete batching plant

Theoretical productivity （m³/h）:120
Standard discharge height（m）:4
Working cycle time(s):120
Outline dimensions(L*W*H mm):55885*20200*21600
Total installed power:210

Features
Technical Data
Inquiry

Theory Capacity:120m³/h

The Mixing System: The mixer is JS2000 with Twin-motors and Planetary Reducer, Twin horizontal shaft compulsory mixer with high capacity but less time,Multi-sealing structure on the shaft end sealing effectively prevents leakage. Belt feeding and Adjustable hydraulic discharge door

Batching System:PLD3200/Individual batching machine has adopted electric weighing, automatically be applied for correction and measure.The batching aggregates can be 3-5types. 18m³ Basic Storage Bins Volume, 3200L Weighing Bins Volume,11kw Motor

Feeding System: Belt feeder, anti-block patents technology ensures forever non-block

Weighing system:The system is with buffering device, auto compensation function and very high weighing accuracy

Screw convey:Diameter ø273mm, Reducer power 15kw

Cement silo:60ton - 200ton, Split for shipping conveniently

Control system:International advanced full auto control models of integration industry computer

All Motors, Speed Reducers, Sensors are of China Famous Brand

Modular Design, Space-Saving Integrated Design, Easy Installation and Removal

China Well-know Trademark, Brand Protected by <Paris Convention for the Protective of Industry Property>

Email to this supplier

Products list

General Inquiry:Inquiry@cn-dfm.com
Whatsapp:+86-13203870856
Skype：cn-dfm
Tel:+86-13203870856
Fax:+86-371-88883974

Commercial Vehicles
Agricultural Machinery

Quick contact

Technical Support:coverweb

Type	HZS120
The whole plant	Theoretical productivity （m³/h）	120
	Standard discharge height（m）	4
	Working cycle time(s)	120
	Outline dimensions(LWH mm)	558852020021600
	Total installed power	210
The mixer section	Type	JS2000
Batching machine section	Type	PLD3200
Pneumatic system	Air compressor model	1.8-7
	Rated exhaust volume(m³/min)	1.67
	Rated exhaust pressure（MPa）	0.8
	Motor power（KW）	15
Weighing system	Gravel metering accuracy range (kg) percentage	+_2%
	Cement metering accuracy range (kg) percentage	+_1%
	Water metering accuracy range (kg) percentage.	+_1%
	Additive metering accuracy range (kg)	+_2%
