E-mail : Inquiry@cn-dfm.com +86-13203870856

  • HZS180

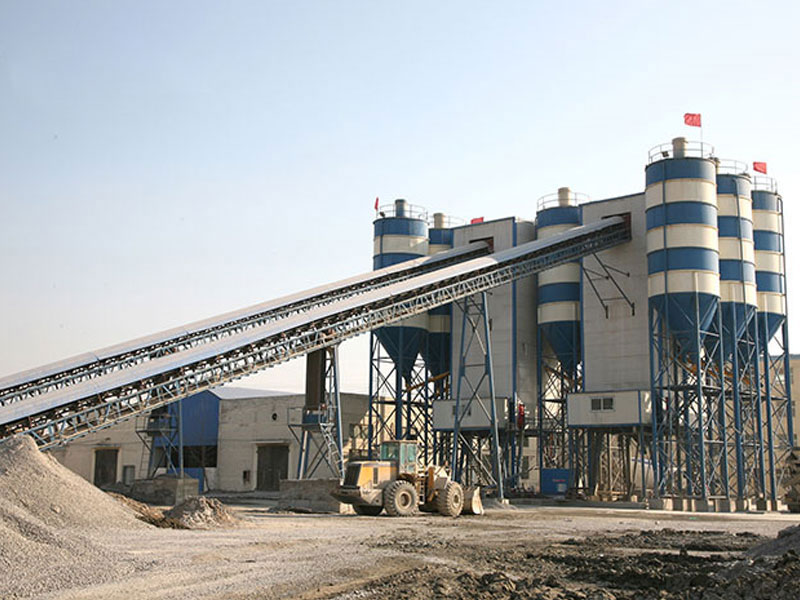

HZS180 concrete batching plant

  • Theory Productivity(m³/h):180
  • Standard Discharging Height(m):4.2
  • Mix Cycle Time(s):60
  • Measurement(m):53*25*21
  • Total Power(KW):275
  • Features
  • Technical Data
  • Inquiry

Theory Capacity:180m³/h

The Mixing System: The mixer is JS3000 with Twin-motors and Planetary Reducer, Twin horizontal shaft compulsory mixer with high capacity but less time,Multi-sealing structure on the shaft end sealing effectively prevents leakage. Adjustable hydraulic discharge door’s angle for function use

Batching System:PLD4800/Individual batching machine has adopted electric weighing, automatically be applied for correction and measure.The batching aggregates can be 3-5types. 18m³Basic Storage Bins Volume, 4800L Weighing Bins Volume, 15kw Motor

Feeding System:Belt feeder, anti-block patents technology ensures forever non-block

Weighing system:The system is with buffering device, auto compensation function and very high weighing accuracy

Screw convey:Diameter ø273mm, ø219mm

Cement silo:60ton - 200ton, Split for shipping conveniently

Control system:International advanced full auto control models of integration industry computer

All Motors, Speed Reducers, Sensors are of China Famous Brand

Modular Design, Space-Saving Integrated Design, Easy Installation and Removal

China Well-know Trademark, Brand Protected by <Paris Convention for the Protective of Industry Property>

Theory Productivity(m³/h) 180
Standard Discharging Height(m) 4.2
Mix Cycle Time(s) 60
Measurement(m) 53*25*21
Total Power(KW) 275
Mixer Model JS3000
Batching Machine Model PLD4800 Pneumatic Independent Weighing
Belt Width mm 1000
Belt Machine Power kW 45
Feeding Method Belt
Weighing Accuracy Aggregate ≤2
Cement and Ash Coal ≤1
Water ≤1
Additive*2 ≤1
Screw Conveyor Model LSY325 Italy Technology
Silo 4×200t Detachable Silo
Control System Centralized Control
MOQ 1 set
Delivery Time 20days
Delivery Port Qingdao or Tianjin
