  • HZS60 concrete batching plant

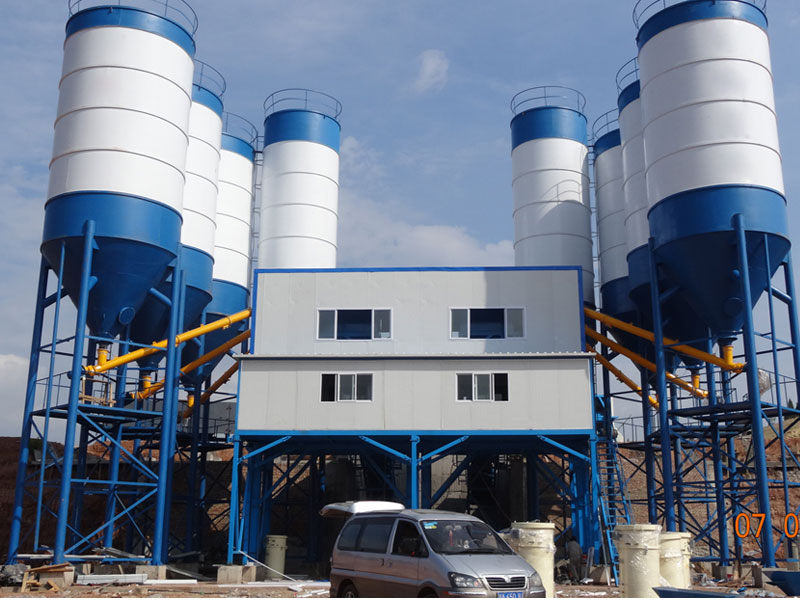

HZS60 concrete batching plant

  • Theory Productivity(m³/h):60
  • Standard Discharging Height(m):4.0
  • Mix Cycle Time(s):60
  • Measurement(m):36*15*21
  • Total Power(KW):115
  • Features
  • Technical Data
  • Inquiry

Theory Capacity:60m³/h

The Mixing System: The mixer is JS1000 twin horizontal shaft compulsory mixer with high capacity but less time, Twin Motors and Reducers design for double power supply, Twin Reducer optional: Cycloidal reducer/Planetary reducer

Batching System:PLD1600 batching machine, the batching aggregates can be 3-5types, 6m³ Basic Storage Bins Volume,1600L Weighing Bins Volume,Full Capacity, 7.5kw Motor, Belt width of 800mm.

Feeding System:Flat Belts/Herringbone belt for optional. Feeding is of closed belt type by continuous feeding, the belt is of china famous brand and the idler is troughed type, with belt tension system and cleaning system. Wait hopper Volume of 2m³.

Weighing system:The system is with buffering device, auto compensation function and very high weighing accuracy.

Screw convey:Diameter ø219mm, Reducer power 11kw

Cement silo:60ton - 200ton, Split for shipping conveniently

Control system:Simple/Standard for optional as your requirements.

Standard control system:Electric Component is Schneider Electric SA/Mitsubishi, Industrial control computer is Advantech, The motor is Mitsubishi in Japan

All Motors, Speed Reducers, Sensors are of China Famous Brand

Modular Design, Space-Saving Integrated Design, Easy Installation and Removal

China Well-know Trademark, Brand Protected by <Paris Convention for the Protective of Industry Property>

Theory Productivity(m³/h) 60
Standard Discharging Height(m) 4.0
Mix Cycle Time(s) 60
Measurement(m) 36*15*21
Total Power(KW) 115
Mixer Model JS1000B
Batching Machine Model PLD1600 Pneumatic Independent Weighing
Belt Width (mm) 800
Belt Machine Power (KW) 22
Feeding Method Belt
Weighing Accuracy Aggregate ≤2
Cement and Ash Coal ≤1
Water ≤1
Additive ≤1
Screw Conveyor Model
Silo 2×100t+1×60t
Control System Centralized Control
MOQ 1 set
Delivery Time 14days
Delivery Port Qingdao or Tianjin
