  • HZS90 concrete batching plant

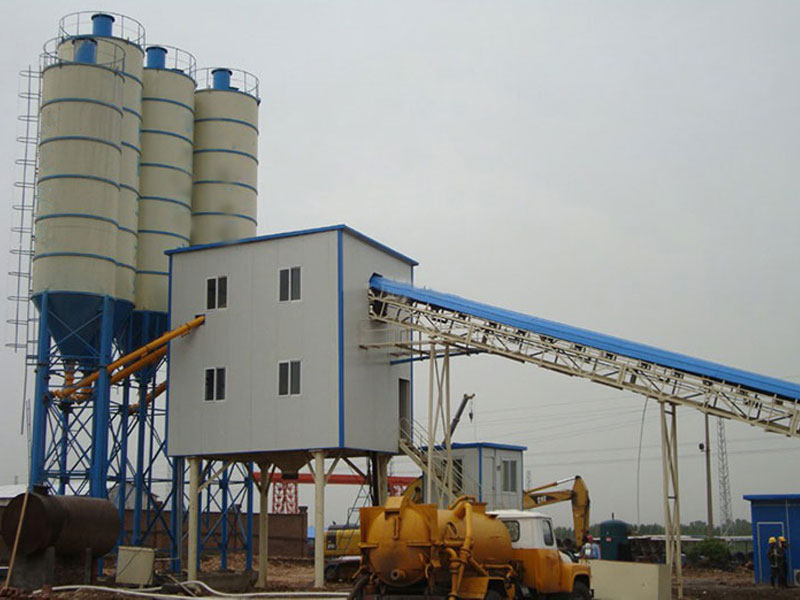

HZS90 concrete batching plant

  • Theory Productivity(m³/h):90
  • Standard Discharging Height(m):4.0
  • Mix Cycle Time(s):60
  • Measurement(m):52*21*21
  • Total Power(KW):195
  • Features
  • Technical Data
  • Inquiry

Theory Capacity:90m³/h

The Mixing System: The mixer is JS1500 with Twin-motors and Planetary Reducer, Twin horizontal shaft compulsory mixer with high capacity but less time,Multi-sealing structure on the shaft end sealing effectively prevents leakage. Adjustable hydraulic discharge door’s angle for function use.

Batching System:PLD2400/Individual batching machine has adopted electric weighing, automatically be applied for correction and measure.The batching aggregates can be 3-5types. 15m³ Basic Storage Bins Volume, 2400L Weighing Bins Volume,7.5kw Motor.

Feeding System:Belt feeder, anti-block patents technology ensures forever non-block

Weighing system:The system is with buffering device, auto compensation function and very high weighing accuracy

Screw convey: Diameter ø219mm, ø273mm, Reducer power 15kw

Cement silo:60ton - 200ton, Split for shipping conveniently

Control system:International advanced full auto control models of integration industry computer

All Motors, Speed Reducers, Sensors are of China Famous Brand

 Modular Design, Space-Saving Integrated Design, Easy Installation and Removal

China Well-know Trademark, Brand Protected by <Paris Convention for the Protective of Industry Property>

Theory Productivity(m³/h) 90
Standard Discharging Height(m) 4.0
Mix Cycle Time(s) 60
Measurement(m) 52*21*21
Total Power(KW) 195
Mixer Model JS1500B or SICOMA MAO 2250/1500
Batching Machine Model PLD2400 Pneumatic Independent Weighing
Belt Width (mm) 800
Belt Machine Power (KW) 30
Feeding Method Belt
Weighing Accuracy Aggregate ≤2
Cement and Ash Coal ≤1
Water ≤1
Additive ≤1
Screw Conveyor Model LSY273 Italy Technology
Silo 3×100t Detachable Silo
Control System Centralized Control
MOQ 1 set
Delivery Time 15days
Delivery Port Qingdao or Tianjin
