  • JZR Diesel Hydraulic Concrete Mixer

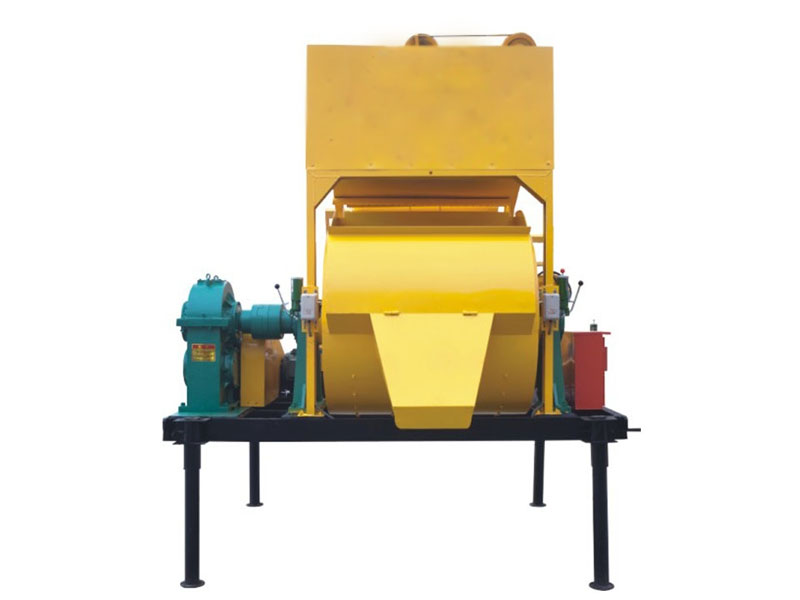

JZR Diesel Hydraulic Concrete Mixer

  • Model:JZR350
  • Discharging Capacity:350 L
  • Loading Capacity:560 L
  • Out put:10-14 m3/h
  • Drum rotation:13-15rpm
  • Features
  • Technical Data
  • Inquiry
 It can mix plastic and half-hard concrete; it suits general construction site, road, bridge, and hydroelectric power projects and some small and middle concrete component factory.
Main Features:
▲ Reasonable structure, smooth running, easy control;
▲ Good quality of mixing, high productivity and automaticity.
Diesel Concrete mxier Main Technical Parameter Main Technical Parameter
Model JZR350 JZR500
Discharging Capacity 350 L 500 L
Loading Capacity 560 L 750 L
Out put 10-14 m3/h 18-22 m3/h
Drum rotation 13-15rpm
Maximum Size of Aggregate 60 mm
Diesel Engine Power 12HP 20HP
Input Power for Water Pump 3HP 3HP
Hopper lifting by Hydralic tipping
Tyre Size 6.50-16
Dimension in Container(LxWxH) 3100x2200x3000MM 3750x2240x3800MM
Total Weight 1600 KGS 2050KGS
