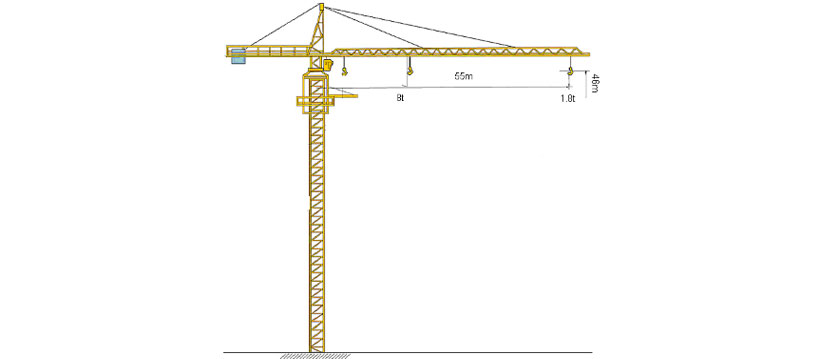

QTZ125 TOWER CRANE
- Model:QTZ125(TC5518)
- Max. Load:8(t)
- Jib Length:55(m)
- Mast Section:1.8×1.8×2.5(m)
- Tip Load:1.8(t)
| Main Technical Parameter |
| Item |
Parameter |
| Model |
QTZ125(TC5518) |
| Max. Load |
8(t) |
| Jib Length |
55(m) |
| Mast Section |
1.8×1.8×2.5(m) |
| Tip Load |
1.8(t) |
| Self Height |
46(m) |
| Max Height |
200 (m) |
| Necessary Electric Power |
67 KW |
| Hoisting System |
| Lifting Speed |
|
| a=2 |
100/50m/min |
| Falling Speed |
≤5 m/min |
| Characteristics |
| l Adopting double-speed coiling electromotor with whirlpool brake; l Adopting whirlpool braking motor to reach ideal lifting speed and slow in position of loading |
| Slewing System |
| Slewing Speed |
0.6 r/min |
| Slewing scope |
720° |
| Power |
2×3.7 KW |
| Characteristics |
| l Adopting hydraulic coupler for transmission, working steady and reliable l There is no shaking or swing while rotating l It can rotate as winds , to decrease the wind influence and ensure safety . |
| Trolley System |
| Trolley Speed |
60/30/10m/min |
| l Adopting three-speed motor l High running speed l Running steady and reliable |
| Electric Elements |
| Control type |
Central control |
| Main electric components |
Schneider Brand (French) |
| Automatically trouble detect |
Such as overloading, mistaken operation |
| Sound & Lights Alarm |
One set |
| Jack-up Device |
| Hydraulic system |
One set |
| Jack |
One set |
