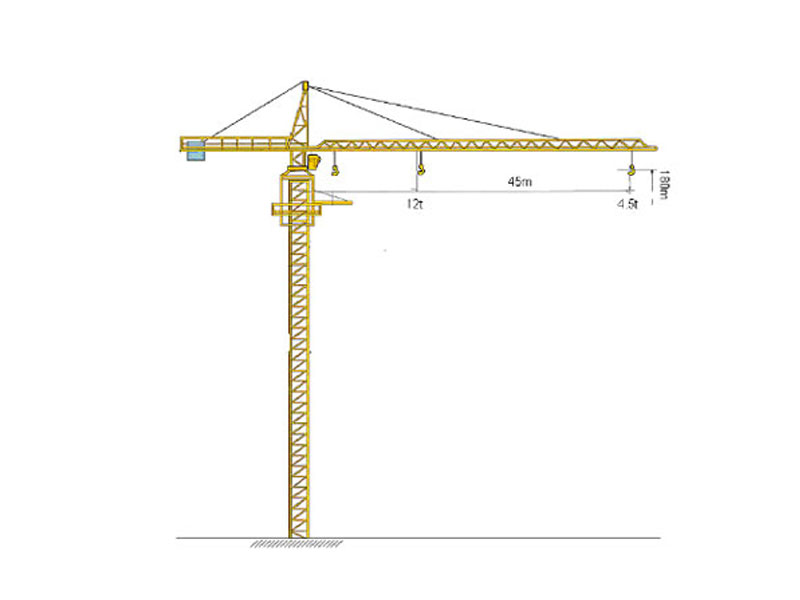

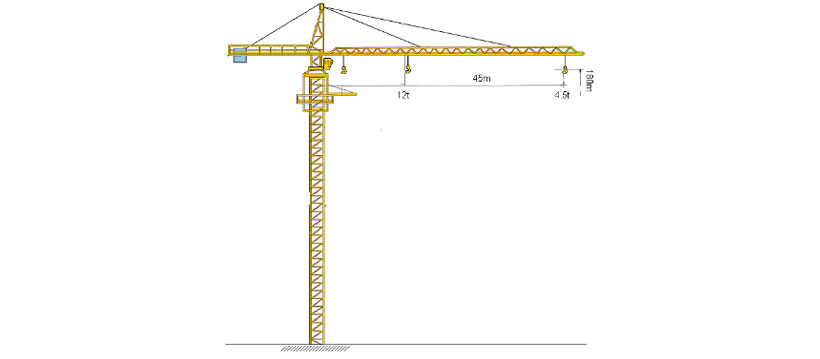

QTZ200 TOWER CRANE
- Model:QTZ200(TC4545)
- Max. Load:12(t)
- Jib Length:45(m)
- Mast Section:2×2×3(m)
- Tip Load:4.5(t)
| Main Technical Parameter |
| Item |
Parameter |
| Model |
QTZ200(TC4545) |
| Max. Load |
12(t) |
| Jib Length |
45(m) |
| Mast Section |
2×2×3(m) |
| Tip Load |
4.5(t) |
| Height |
180(m) |
| Total Power |
110KW |
| Hoisting System |
| Lifting Speed |
|
| a=2 |
0~51~102 m/min |
| a=4 |
0~25.5~51 m/min |
| Falling Speed |
≤7 m/min |
| Characteristics |
| l Adopting electromagnetic clutch to control speed and operation easily and convenient l Adopting vortex braking motor to reach ideal lifting speed and slow in position of loading |
| Slewing System |
| Slewing Speed |
0.7 r/min |
| Slewing Scope |
720° |
| Characteristics |
| l Adopting hydraulic coupler for transmission, working steady and reliable l There is no shaking or swing while rotating l It can rotate as winds , to decrease the wind influence and ensure safety . |
| Trolley System |
| Trolley Speed |
0~80m/min |
| l High running speed l Running steady and reliable |
| Electric Elements |
| Control Type |
Central control |
| Main Electric Components |
Schneider Brand (French) |
| Automatically Trouble Detect |
Such as overloading, mistaken operation |
| Sound & Lights Alarm |
One set |
| Jack-up Device |
| Hydraulic System |
One set |
| Jack |
One set |
