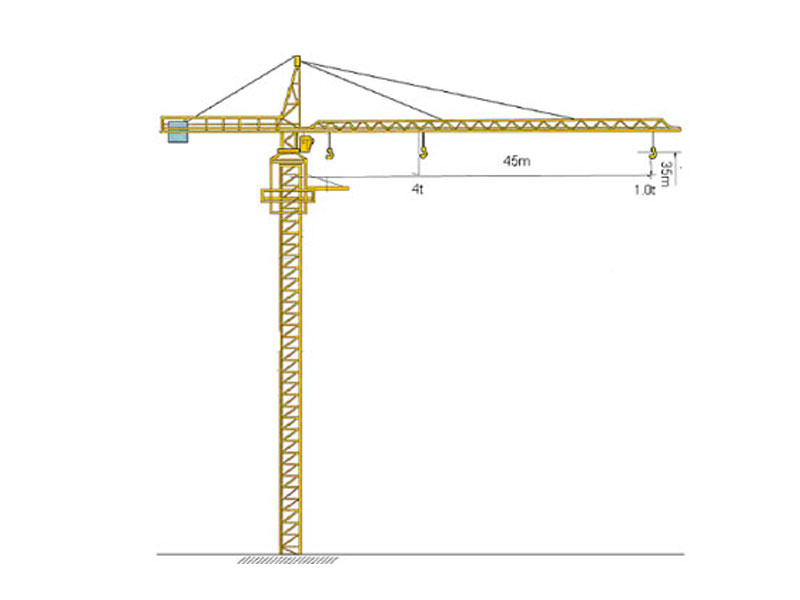

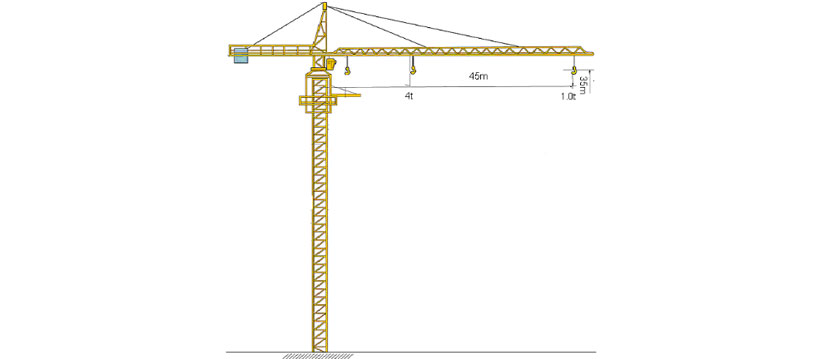

TC4510 TOWER CRANE
- Model:TC4510
- Max. Load:4(t)
- Jib Length:45(m)
- Mast Section:1.5×1.5×2.5(m)
- Tip Load:1.0(t)
| Main Technical Parameter |
| Item |
Parameter |
| Model |
TC4510 |
| Max. Load |
4(t) |
| Jib Length |
45(m) |
| Mast Section |
1.5×1.5×2.5(m) |
| Tip Load |
1.0(t) |
| Independent Height |
35(m) |
| Designed Height |
100 (m) |
| Necessary Electric Power |
21.7 KW |
| Hoisting System |
| Lifting Speed |
|
| a=2 |
76/38/10m/min |
| Falling Speed |
≤5 m/min |
| Characteristics |
| l Adopting three-speed coiling electromotor with whirlpool brake; l Adopting whirlpool braking motor to reach ideal lifting speed and slow in position of loading |
| Slewing System |
| Slewing Speed |
0.77 r/min |
| Slewing Scope |
720° |
| Power |
2×3.7 KW |
| Characteristics |
| l Adopting hydraulic coupler for transmission, working steady and reliable l There is no shaking or swing while rotating l It can rotate as winds , to decrease the wind influence and ensure safety . |
| Trolley System |
| Trolley Speed |
21.6/43.2m/min |
| l Adopting double-speed motor l High running speed l Running steady and reliable |
| Electric Elements |
| Control Type |
Central control |
| Main Electric Components |
Schneider Brand (French) |
| Automatically Trouble Detect |
Such as overloading, mistaken operation |
| Sound & Lights Alarm |
One set |
| Jack-up Device |
| Hydraulic System |
One set |
| Jack |
One set |
