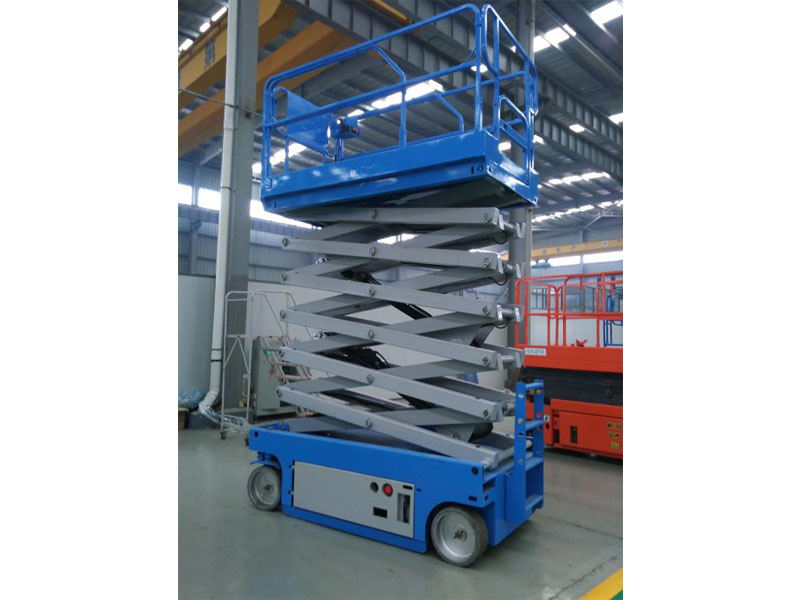

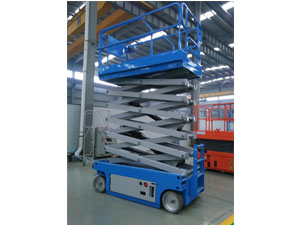

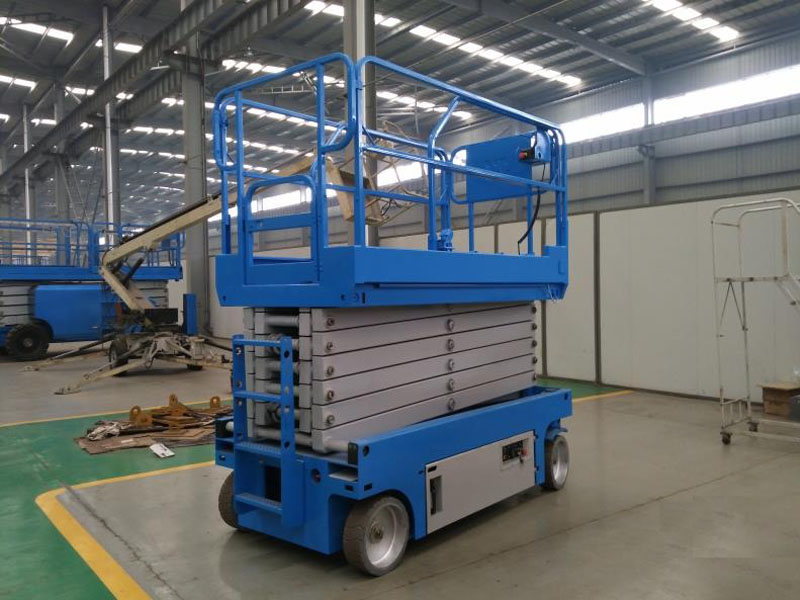

Dongfeng Jianghe Brand Electrcal Scissor Aerial Lifting Working Platform 07 Series 7m
- Working height:7-14m
- Battery brand:Trojam USA brand
- Drive power:24V/3.0kw
- Max working load (unrestricted) :230kg
- Drive type:Electrical hydraulic drive
|
Aerial Working Platform
|

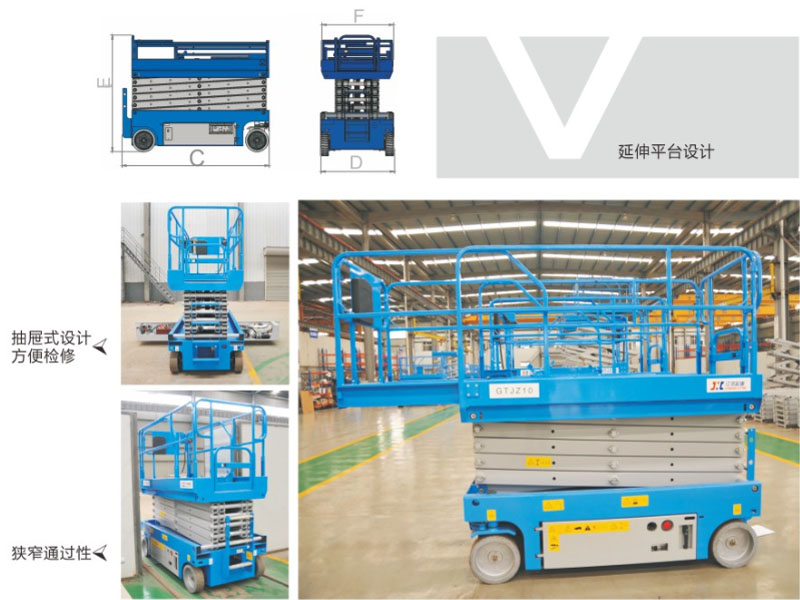

Dimension
|
Model
|
GTJZ0807HD
|
|
Max.working height-A
|
7.8 m
|
|
Max.platform height-B
|
5.8 m
|
|
Overall weight
|
1260 kg
|
|
Overall length-C
|
1.86 m
|
|
Overall Width-D
|
0.76 m
|
|
Overall height(railings unfolded)
|
2.19 m
|
|
Overall height(railings folded)-E
|
1.85 m
|
|
Wheelbase
|
1.4 m
|
|
Platform size(L*W-F)
|
1.67*0.74 m
|
|
Min.ground clearance（stowed）
|
0.1 m
|
|
Min.ground clearance（elevated）
|
0.02 m
|
|
Extendable platform length-G
|
0.9 m
|
|
Performance
|
Lift capacity
|
230 kg
|
|
Extension Deck lift capacity
|
113 kg
|
|
Max.occupancy
|
2
|
|
Min.turning radius-inside
|
0 m
|
|
Min.turning radius-outside
|
1.6 m
|
|
Drive speed(platform lowered)
|
3.5 km/h
|
|
Drive speed(platform Elevated)
|
0.8 km/h
|
|
Lifting/lowering speed
|
18/22 sec
|
|
Gradeability
|
25%
|
|
Max.tilt(Euro/USA)
|
1.5°/3°
|
|
Tire
|
Ф323×100 mm
|
|
Power
|
Motor
|
24V/3.0 kw
|
|
Battery
|
4×6V/225Ah
|
|
Charger
|
24V/25A
|
|

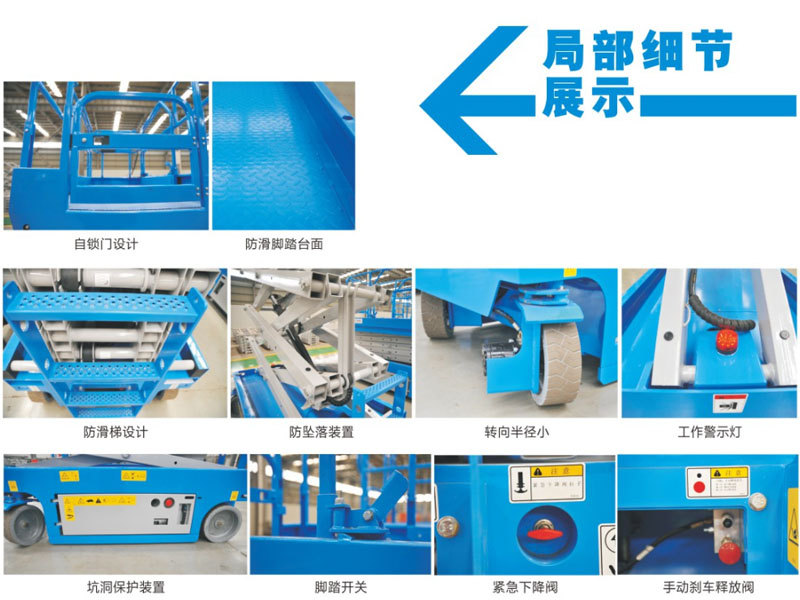

Standard
|
Pothole guards
|
Options
|
AC power to platform
|
|
Extension deck
|
|
Solid non-marking tires
|
Overload sensor
|
|
On-board diagonstic system
|
|
Tilt level sensor
|
Dual flashing beacons
|
|
Folding rails
|
|
Emergency stop
|
Airline to platform
|
|
Manual platform lowering valve
|
