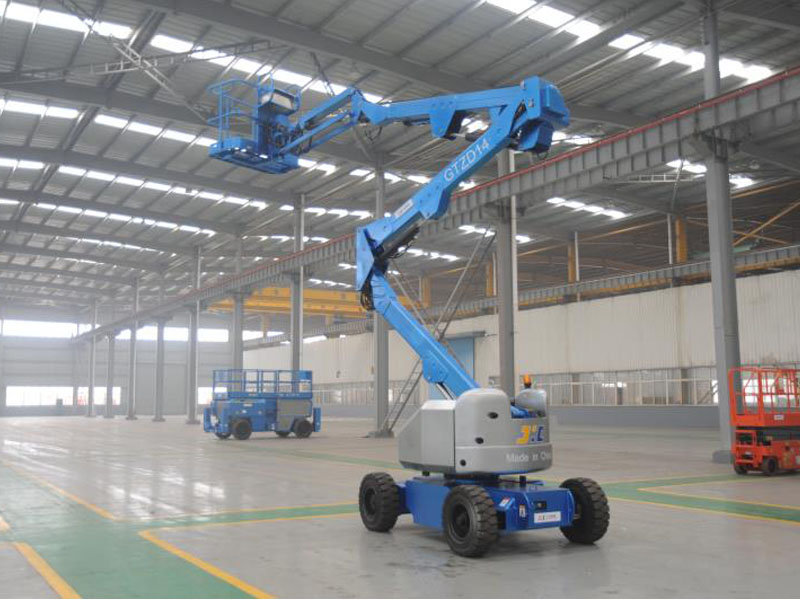

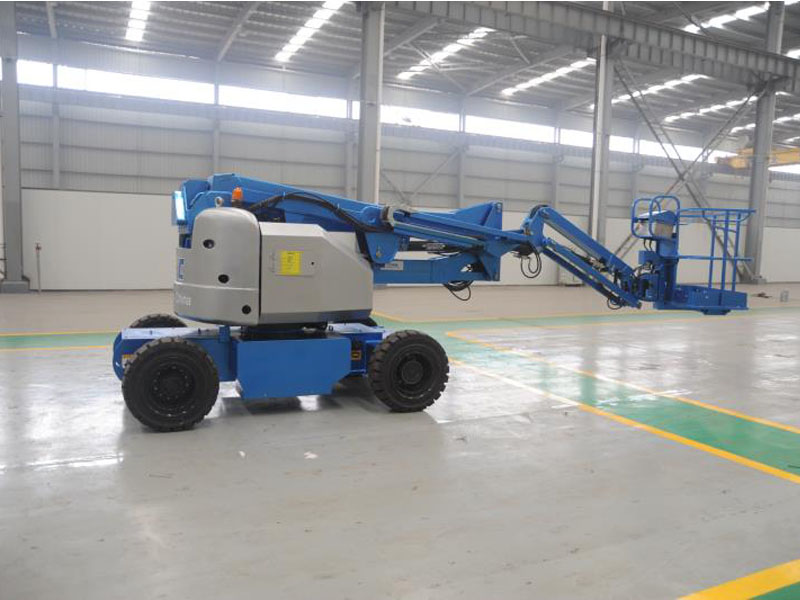

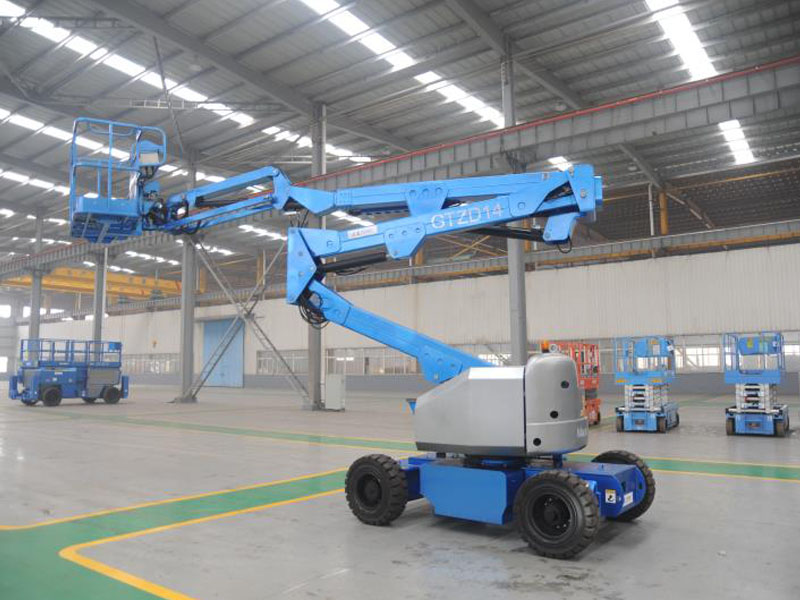

Dongfeng Jianghe Brand Electrcal Articulating Aerial Working Platform 14-17m
- Working height:14-17m
- Battery brand:Trojam USA brand
- Drive power:48V
- Max working load (unrestricted) :230kg
- Drive type:Electrical drive
|
Model
|
Z-40E
|

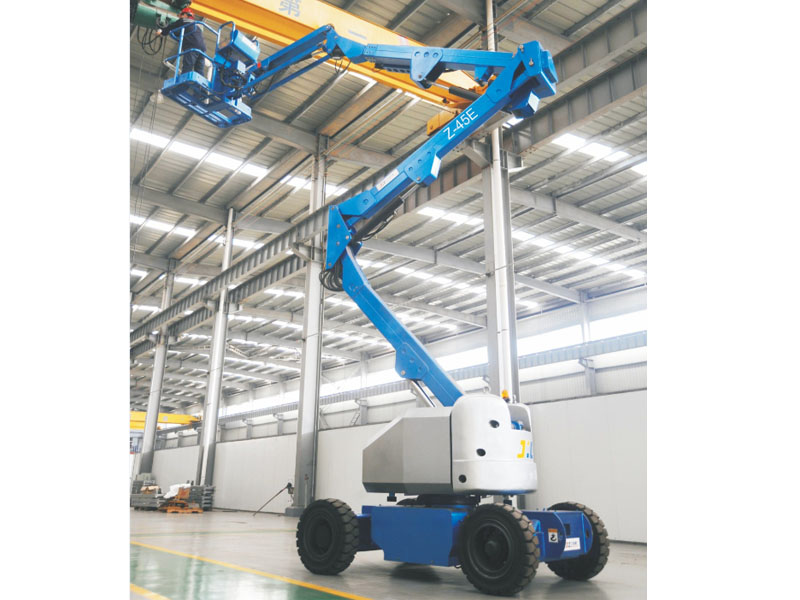

Z-45E
|
Z-52E
|
|
Lift capacity (kg)
|
200
|
230
|
230
|
|
Max.platform occupancy
|
2
|
2
|
2
|
|
Working height (m)
|
14
|
15.7
|
17.8
|
|
Platform height (m)
|
12
|
13.7
|
15.8
|
|
Max.horizontal extension (m)
|
8
|
7.4
|
10
|
|
Max.up & over clearance (m)
|
5
|
7.4
|
7.6
|
|
Platform size (L*W*H) (m)
|
1.53*0.76*1.1
|
1.53*0.76*1.1
|
1.53*0.76*1.1
|
|
Overall height (m)
|
2
|
2
|
2
|
|
Overall length (m)
|
5.32
|
5.54
|
7.9
|
|
Overall width (m)
|
1.75
|
1.75
|
2.28
|
|
Wheelbase (m)
|
2
|
2
|
2.2
|
|
Min.Ground Clearance (m)
|
0.2
|
0.2
|
0.2
|
|
Turnable rotation (°)
|
355 non-continuously
|
355 non-continuously
|
360 continuously
|
|
Platform rotation (°)
|
120
|
160
|
160
|
|
Drive speed (platform lowered) (km/h)
|
3.2
|
5.2
|
5
|
|
Drive speed (platform elevated) (km/h)
|
0.8
|
0.8
|
0.8
|
|
Min.turning radius-outside (m)
|
4.5
|
4.5
|
4.8
|
|
Gradeability (%)
|
25
|
30
|
30
|
|
Turnable tail swing (m)
|
0.125
|
0
|
0
|
|
Airless tire
|
250*150
|
250*150
|
250*150
|
|
Motor
|
48 V DC
|
48 V DC
|
48 V DC
|
|
Battery
|
8x6V/320Ah
|
8x6V/420Ah
|
8x6V/420Ah
|
|
Driving system (kw)
|
6.5*2
|
6.5*2
|
6.5*2
|
|
Auxiliary power (V)
|
12 V DC
|
12 V DC
|
12 V DC
|
|
Hydraulic tank (L)
|
40
|
70
|
70
|
|
Weight (kg)
|
5300
|
6500
|
6780
|
|
Proportional control
|
选装Optional
|
AC power to platform
|
|
Manual emergency pump
|
|
Hour meter
|
|
Tilt protection system
|
Overload sensor
|
|
Turnable rotation 360° continuous
|
|
Auto leveling platform
|
|
Foot switch
|
Platform working light
|
|
4*2 AC drive
|
|
Eva tires
|
|
Fault diagnosis system
|
|
Buzzer
|
Solid non-marking tires
|
|
Horn
|
|
Strobe light
|
|
Zero emission
|
