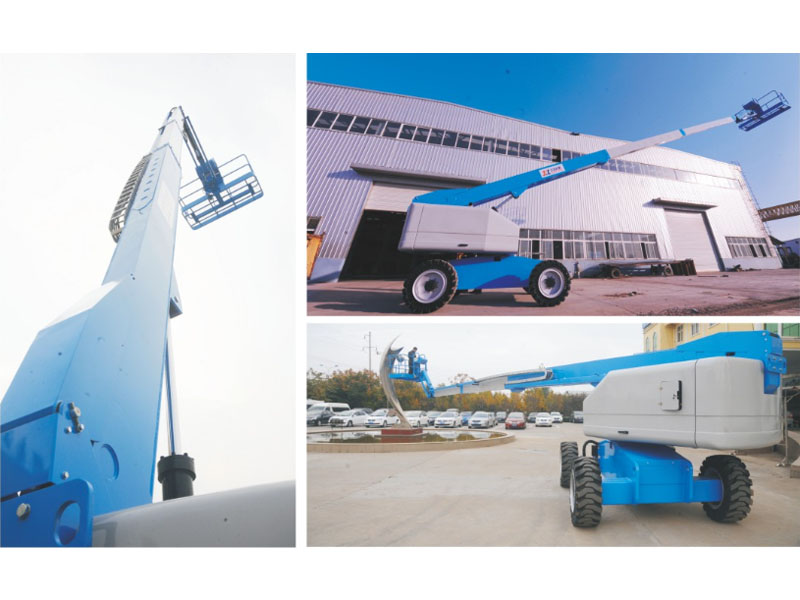

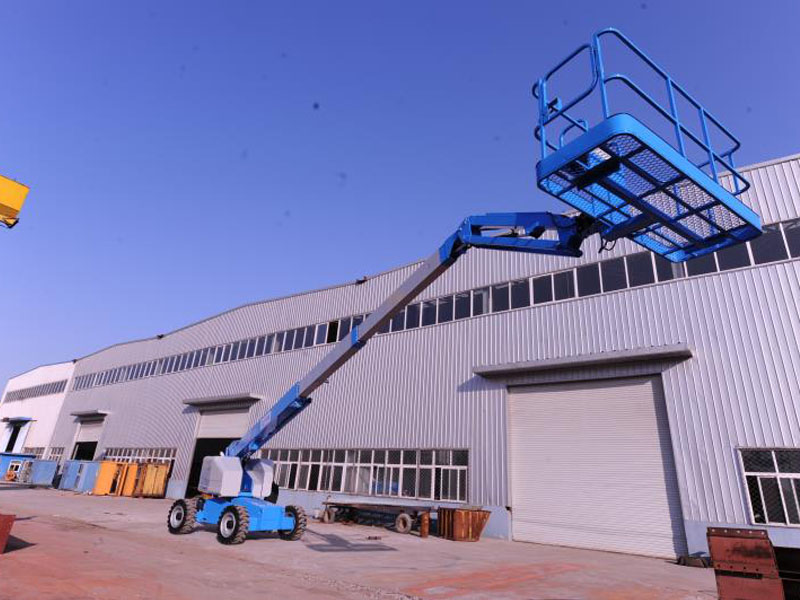

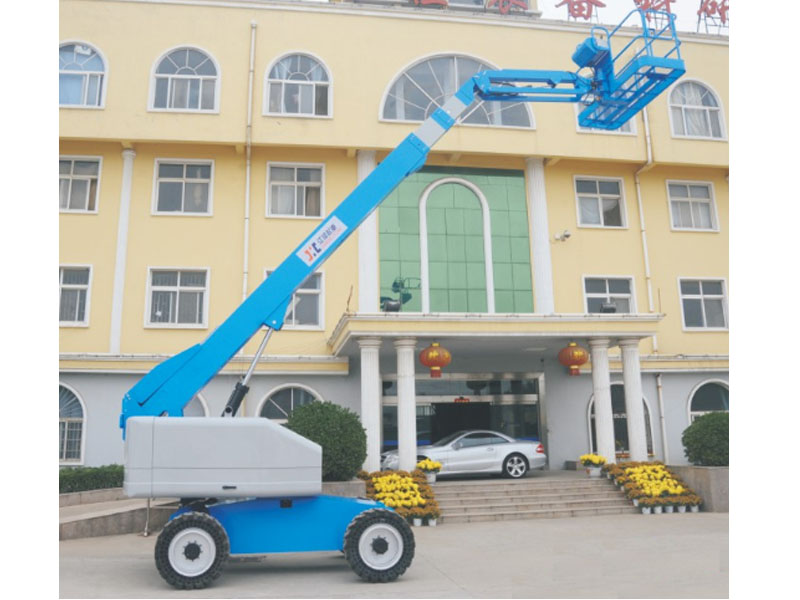

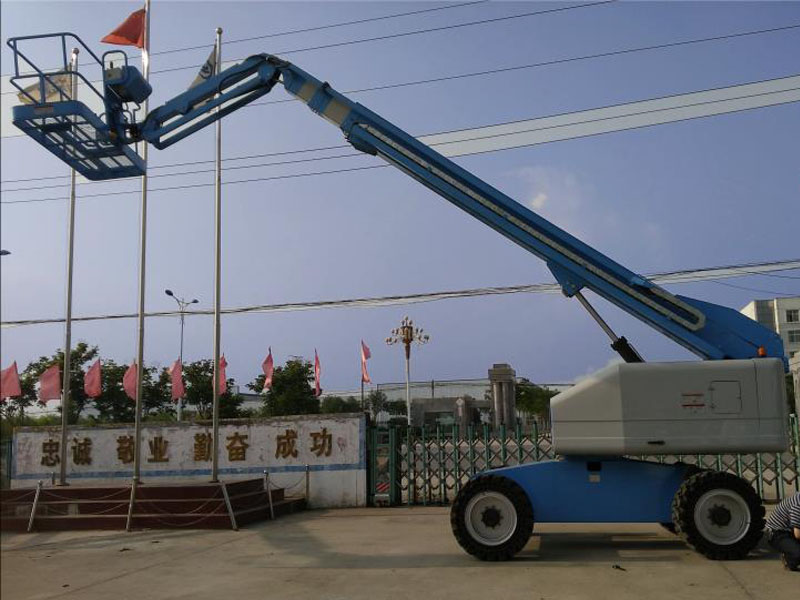

Dongfeng Jianghe Brand Self propelled Telescopic Boom Aerial Working Lifitng Platform 20-40m
- Working height:20-40m
- Engine brand:Cummins or Perkins
- Platform height:18-38m
- Max working load (unrestricted) :230kg
- Drive type:4x2 or 4x4
| Model |
S-60 |
S-66J |
S-72J |
S-80J |
S-86J |
S-98J |
S-105J |
S-125J |
| Lift capacity (kg) |
230 |
230 |
230 |
230 |
200 |
200 |
340 |
340 |
| Max.platform occupancy |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
| Working height (m) |
20.3 |
22.3 |
23.9 |
25.4 |
28.4 |
31.3 |
33.7 |
40.1 |
| Platform height (m) |
18.3 |
20.3 |
22.2 |
23.7 |
26.7 |
29.6 |
32 |
38.4 |
| Max.horizontal extension (m) |
15.09 |
17.3 |
20.2 |
20.3 |
23.4 |
21.2 |
24.4 |
24.4 |
| Platform size (L*W) (m) |
0.91*2.43 |
0.91*2.43 |
0.91*2.44 |
0.91*2.44 |
0.91*2.44 |
0.91*2.44 |
0.91*2.44 |
0.91*2.44 |
| Overall height (m) |
2.67 |
2.67 |
2.7 |
2.7 |
2.8 |
2.8 |
3.08 |
3.08 |
| Overall length (m) |
8.45 |
10.27 |
10.69 |
11.3 |
12.46 |
13.5 |
14.02 |
14.1 |
| Overall width (m) |
2.43 |
2.43 |
2.5 |
2.5 |
2.5 |
2.5 |
3.35 |
3.35 |
| Wheelbase (m) |
2.46 |
2.46 |
2.5 |
2.5 |
3 |
3 |
3.66 |
3.66 |
| Min.Ground Clearance (m) |
0.3 |
0.3 |
0.43 |
0.43 |
0.43 |
0.43 |
0.43 |
0.43 |
| Turnable rotation (°) |
360 continuously |
360 continuously |
360 continuously |
360 continuously |
360 continuously |
360 continuously |
360 continuously |
360 continuously |
| Platform rotation (°) |
160 |
180 |
160 |
160 |
160 |
160 |
160 |
160 |
| Drive speed (platform lowered) (km/h) |
6.8 |
6.8 |
6.3 |
6.3 |
5.3 |
5.3 |
4.4 |
4.4 |
| Drive speed (platform elevated) (km/h) |
0.8 |
0.8 |
1.3 |
1.1 |
1.1 |
1.1 |
1.1 |
1.1 |
| Min.turning radius-inside (m) |
2.4 |
2.4 |
3 |
3 |
3.59 |
3.59 |
4.14 |
4.14 |
| Min.turning radius-outside (m) |
5.13 |
5.13 |
5.2 |
5.2 |
6.25 |
6.25 |
6.56 |
6.56 |
| Gradeability 2WD (%) |
45 |
45 |
45 |
30 |
30 |
30 |
30 |
30 |
| Gradeability 4WD (%) |
45 |
45 |
45 |
45 |
45 |
45 |
45 |
45 |
| Tire |
38.5*14-20 |
38.5*14-20 |
9.00-20 |
9.00-20 |
12.00-20/8.5 |
12.00-20/8.5 |
12.00-20/8.5 |
12.00-20/8.5 |
| Engine |
Cummins/perkins |
Cummins/perkins |
Cummins/perkins |
Cummins/perkins |
Cummins/perkins |
Cummins/perkins |
Cummins/perkins |
Cummins/perkins |
| Auxiliary power |
12 V DC |
12 V DC |
24 V DC |
24 V DC |
24 V DC |
24 V DC |
24 V DC |
24 V DC |
| Hydraulic tank (L) |
120 |
120 |
190 |
190 |
190 |
190 |
265 |
265 |
| Fuel tank (L) |
130 |
130 |
150 |
150 |
150 |
150 |
150 |
150 |
| Weight 2*2 drive (kg) |
12140 |
12640 |
13140 |
13640 |
16440 |
16940 |
18660 |
20160 |
| Weight 4*2 drive (kg) |
12220 |
12720 |
13220 |
13720 |
16520 |
17020 |
18740 |
20240 |
