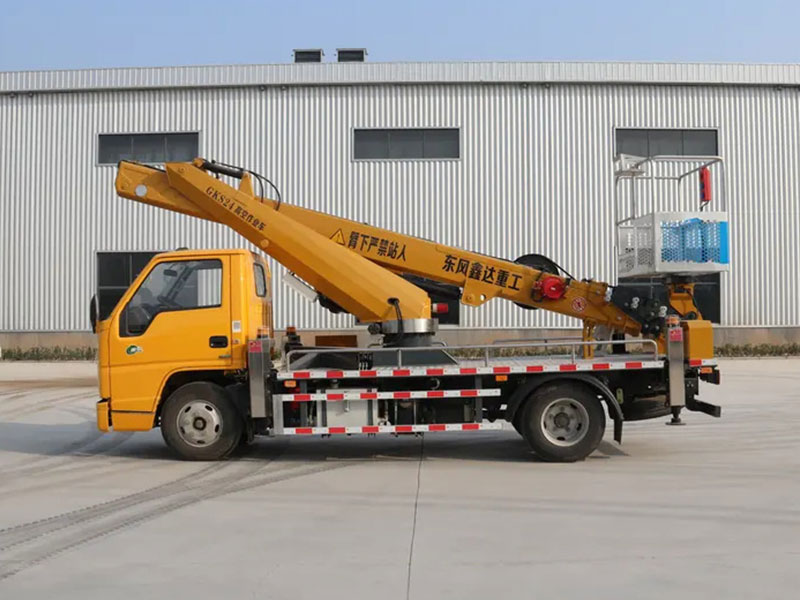

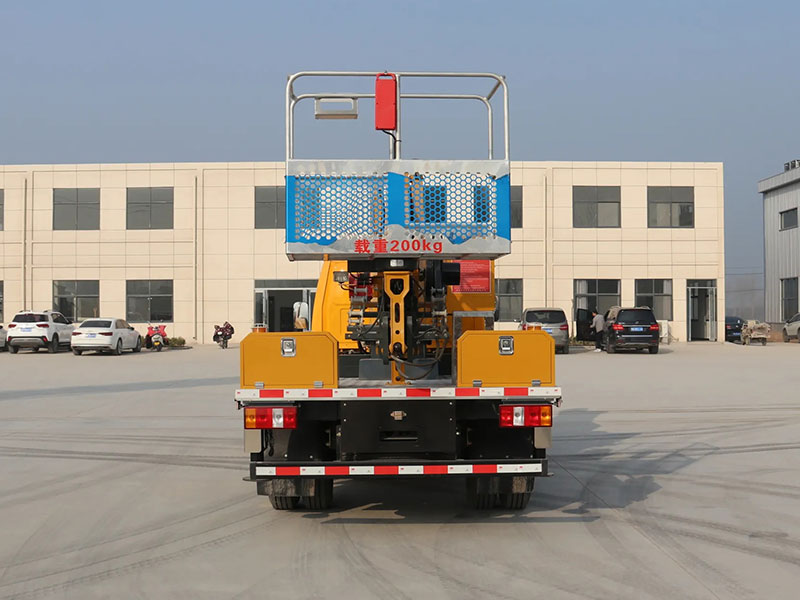

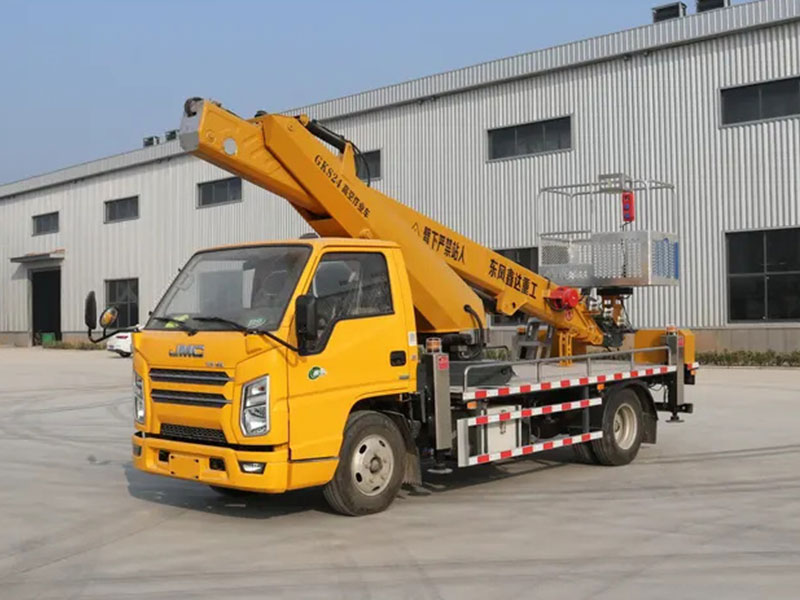

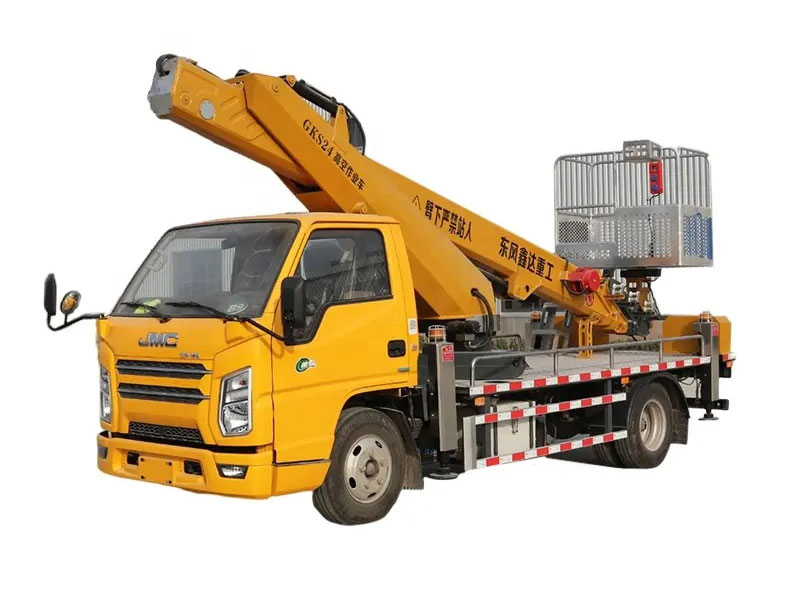

24m Aerial Work Platform Truck
- Maximum operation height:23.7m
- Maximum operation range:14.5m
- Rated load of the work platform:200kg
- Front leg spread width:4400mm
- Rear leg spread width:4100mm
This 24m Aerial Work Platform Truck is a high quality industrial vehicle designed for working at heights. The Aerial Platform can carry two people for repair or installation work and features an extendable and swivel work platform for easy access to the work area. In addition, this aerial work vehicle is extremely stable, making it ideal for all types of construction, power, telecommunications and urban services.
|
DXD5041JGKJX6-24M
|
project
|
unit
|
technical parameter
|
|
Vehicle size parameters
|
cabinet minister
|
mm
|
5995
|
|
total width
|
mm
|
2000
|
|
total height
|
mm
|
2950
|
|
total mass
|
kg
|
4495
|
|
wheel base
|
mm
|
3360
|
|
Main performance parameters
|
Maximum operation height
|
m
|
23.7
|
|
Maximum operation range
|
m
|
14.5
|
|
Rated load of the work platform
|
kg
|
200
|
|
Turn table rotation Angle
|
°
|
± 360°
|
|
Front leg spread width
|
mm
|
4400
|
|
Rear leg spread width
|
mm
|
4100
|
|
Chassis parameters
|
Chassis model
|
-
|
-
|
|
engine type
|
-
|
JX4D30B6H
|
|
Engine power
|
kw/ps
|
85/115
|
|
effluent standard
|
-
|
or other
Euro 6 or other
|
|
Maximum driving speed
|
km/h
|
100
|
|
Approximate number
|
man
|
2
|
|
approach angle
|
°
|
20
|
|
departure angle
|
°
|
15
|
