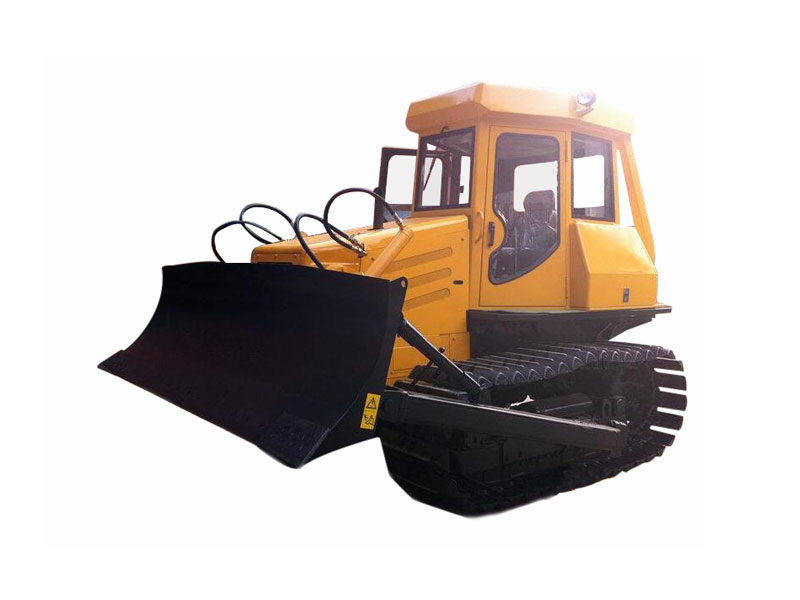

1. Type, the machine use dongfanghong LR4A3Z - 22 turbocharged engine, big power, low noise, energy conservation and low consumption;
2. Gearbox for 4 f ﹢ 2 r shaft mechanical shift, adapt to a variety of environmental work;
3. The rigid chassis, semi-rigid suspension of whole car walking structure;
4. The control of the advanced control system, hydraulic power steering, flexible manipulation and effort;
5. Bridge house is composed of steel welding, high strength, impact resistance, good safety protection;
6. Suitable for small plot environment construction, the work is flexible, high work efficiency;
7. The standard heater, optional usage of air conditioning;
8. Maintenance of the machine adopts humanized design, improve the convenience of maintenance and repair;
9. The machine dynamic economy is good, high reliability, is an ideal construction machinery.
| Model |
Unit |
T80/TS80 |
| Total weight |
kg |
8600/9000 |
| Max towing force |
kN |
69 |
| Engine model |
|
LR4A3Z-22 |
| Engine rated power/speed |
kW/r/min |
70/2200 |
| Fuel consumption of the engine |
g/kw·h |
≤246 |
| Engine max torque |
N·m |
313.9 |
| Forward travel speed |
km/h |
Forward 4 gear: 2.4~10.4 |
| Backward travel speed |
km/h |
Backward 2 gear: 4.9~8.9 |
| Track board width |
mm |
400/600 |
| Land pressurekPa |
53/34 |
| Overall length |
mm |
4200 |
| Overall width |
mm |
2480/2934 |
| Overall height |
mm |
2740/2890 |
| Bulldozer width |
mm |
2480/2934 |
| Bulldozer height |
mm |
922/930 |
| Blade max lifting height |
mm |
736.5/715 |
| Blade max digging depth |
mm |
370/357 |
| Traction equipment/Scarifier (optional) |
/ |
Fixed/Three teeth |
