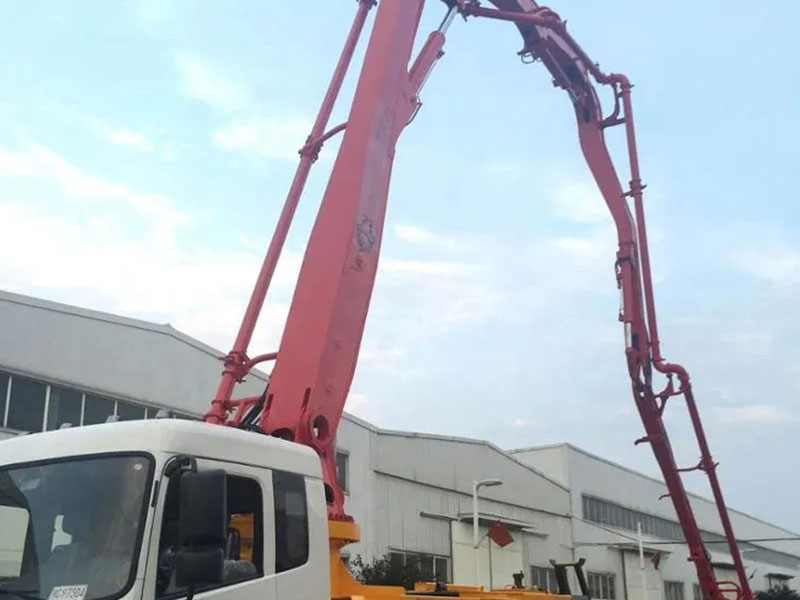

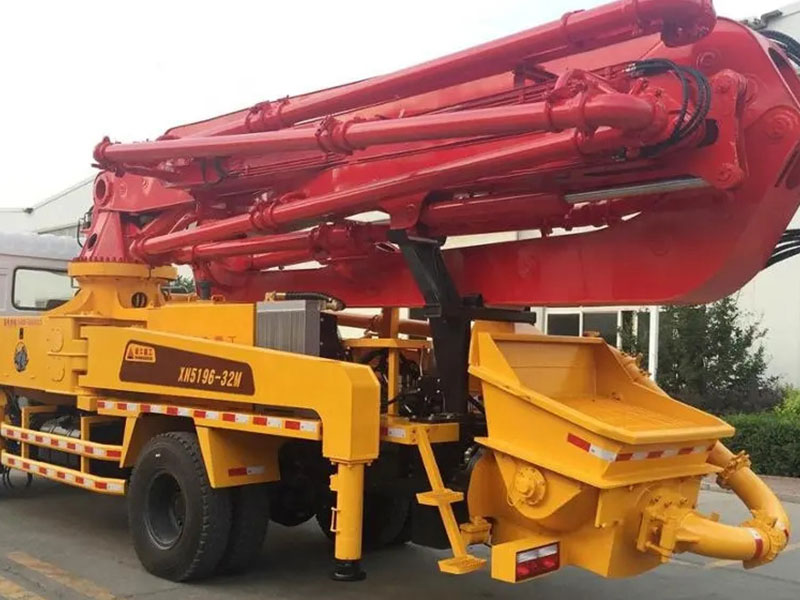

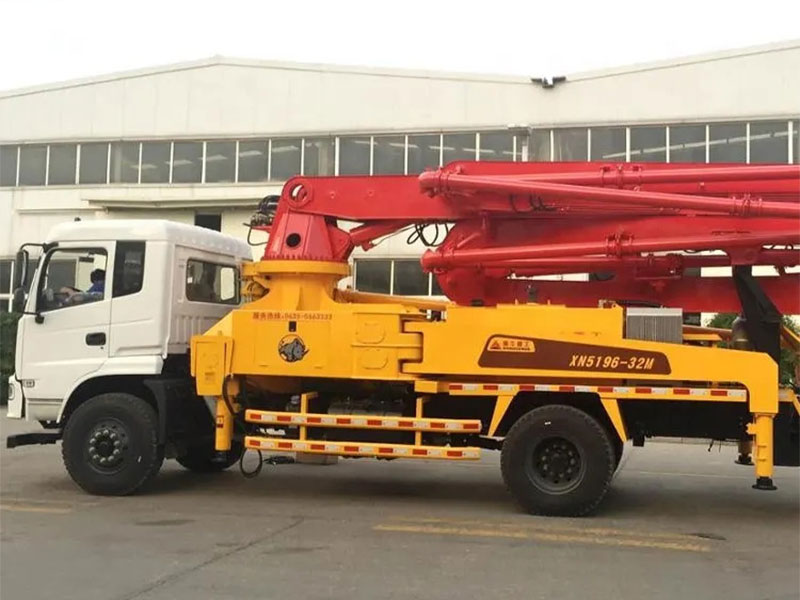

Dongfeng 32M Concrete Pump Truck
- Condition:New
- Weight:20600 kg
- Max. horizontal conveying distance:32m
- Max. vertical conveying distance:32m
- Reach depth:15.5m
Dongfeng 32M Concrete Pump Truck adopts international advanced technology, with high-quality performance and high reliability. The pump truck has a pumping slurry output capacity of 180m³/h, and is equipped with a high-performance hydraulic system, making concrete delivery faster and more stable. In addition, the pump truck has been improved many times, easy to operate, easy to maintain, and has a long service life. It is a high-quality and cost-effective pump truck.
|
Vehicle Dimension
|
Length
|
10350mm
|
|
Width
|
2500mm
|
|
Height
|
3610mm
|
|
Total weight
|
20600kg
|
|
Boom & outrigger
|
No. of section
|
5
|
|
Vertical reach
|
32m
|
|
Horizontal reach
|
29m
|
|
Reach depth
|
15.5m
|
|
1st section
|
length
|
7225mm
|
|
Articulation
|
0-90°
|
|
2nd section
|
length
|
5570mm
|
|
Articulation
|
0-180°
|
|
3rd section
|
length
|
5260mm
|
|
Articulation
|
0-245°
|
|
4th section
|
length
|
5205mm
|
|
Articulation
|
0-230°
|
|
5th section
|
length
|
5050mm
|
|
Articulation
|
±360°
|
|
Rotation
|
|
±360°
|
|
Distrance of front outriggers out
|
|
5584 mm
|
|
Distrance of rear outriggers out
|
|
6818mm
|
|
Pumping system
|
Theoretically output
|
93 m3/h
|
|
Max. Strokes per minutes
|
32 times/min
|
|
Delivery cylinder diameter
|
200mm
|
|
Stroke length
|
1600mm
|
|
Hydraulic system
|
Open loop
|
|
Hydraulic system oil pressure
|
32Mpa
|
|
Outlet pressure
|
7.9Mpa
|
|
Oil tank capacity
|
500L
|
|
Water tank capacity
|
550L
|
|
Pipe line size
|
125mm
|
|
End hose length
|
3m
|
|
End horse diameter
|
125mm
|
|
Chassis
|
Chassis model
|
SINOTRUK,DFM
|
|
Engine power
|
MAN 206KW
|
|
Emission standard
|
National IV
|
|
Displacement
|
6.87L
|
|
Max. speed
|
80km/h
|
|
Ground clearance
|
260
|
|
Wheel base
|
5000mm
|
