  • Motor grader GR135C

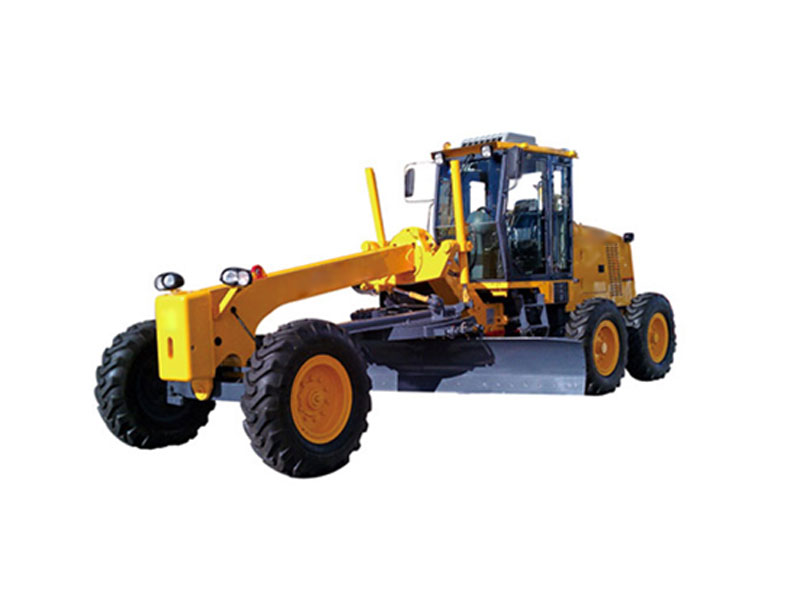

Motor grader GR135C

  • Model:PY135C
  • Operating Mass:11000KG
  • Engine Model:6BT5.9
  • Engine Power:110KW
  • Engine Speed:2200 r/min
  • Features
  • Technical Data
  • Inquiry
1. Famous brand diesel engines turbocharged and water-cooled with reliable and powerful performance feature energy.
2. Torque converter and power-shift gearbox introduced from GERMANY ZF inc. are integrated together. Six forward gears and three backward gears meet various requirements during machine’s working and transporting.
3. Driving axle with integrated free-wheel anti-slip differential and strong roller chain drive tandem case, Boxed oscillated steering front axle with leaned wheels.
4. Popular working mechanism with pendulum-arm connecting rod structure, Standard equipped free-maintenance rolling-plate circle device. Double cylinders of the blade tip control can adjust the cutting angle depending on soil quality.
5. Flexible hydraulic control system with two sets of HUSCO five way control valve, Imported hydraulic equalizing valve for the blade lifting, Patent hydraulically –operated pin drawing device is designed firstly in board.
6. Steering system with center articulate joint and tilting turning front wheels can get offset travel of the entire machine.
7. Service braking system of, caliper disc brakes on four rear wheels and mechanical internal expanding parking brake let.
8. Dual diagonal appearance with whole metal hood 1m×1m distance.
9. Electro-hydraulically operated with entire instrumental monitoring system, Free-maintenance OPTIMA Sweden batteries have.
10. It is optional for front bulldozing plate and rear ripper.
Operating mass kg 11000
Engine model   6BT5.9
Engine power KW 110
Engine speed r/min 2200
Overall dimensions mm 8015×2380×3050
Max. forward speed km/h 42
Max. backward speed km/h 30
Speed gear number   F6/R3
Tractive force(f=0.75) KN 61.3
Hydraulic system pressure Mpa 16
Max. steering angle of front wheels ° ±49
Max. lean angle of front wheels ° ±17
Max. oscillation angle of front axle ° ±15
Max. oscillation angle of balance box   Front/Rear 16
Frame articulation angle ° ±27
Min. turning radius mm 6600
Blade length × height mm 3710×610
Maximum lift above ground mm 410
Maximum depth of cutting mm 535
Maximum blade position angle ° 90
Blade cutting angle ° 28—70
Engine   Cummins engine
Cab   Cabin with AC.
Packing   Nude Cargo
