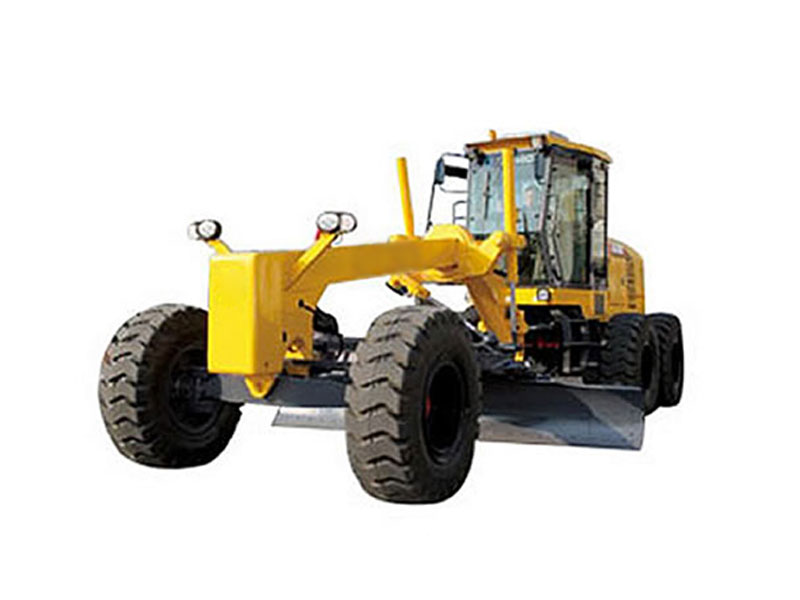

GR Series Motor Grader is mainly used for highways, airports, and other large areas of farmland floor leveling and trenching, slope scraping, bulldozing, scarification, snow removal and other operations. It is under construction and water conservancy construction defense engineering, mine construction, urban and rural roads construction, farmland improvement and other necessary construction machinery.
New designs.
Adopt articulated frame, with the front wheel steering, small turning radius, mobile and flexible.
Electro-hydraulic control power shift transmission, 6-speed forward, backward 3 files.
Adopt international support hydraulic parts, reliable work.
Blade action is fully hydraulic control.
Rear axle drive axle is equipped with three-NO-SPIN self-locking differential.
Adjustable console, seats, steering handle and instrument layout is reasonable, easy to use, improved ride comfort.
Cab luxury and beauty, vision, good seal.
It can be installed in front bulldozing plate, rear scarifier, front harrow, automatic leveling device.
| (Main Technical Parameters) |
| MODEL |
|
PY180C |
| Operating mass |
kg |
16000 |
| Front axle load |
kg |
5150 |
| Rear axle load |
kg |
10850 |
| Max.forward speed |
km/h |
38.2 |
| Max.backward speed |
km/h |
24.5 |
| Speed gear number |
|
F6/R3 |
| Turning radius |
mm |
7800 |
| Hydraulic system pressure |
Mpa |
18 |
| Blade length×height |
mm |
3965×610 |
| Front wheeltrack |
mm |
2150 |
| Rear wheeltrack |
mm |
2340 |
| Wheelbase |
mm |
6362 |
| Engine power |
kw |
132 |
| Overall dimensions |
mm |
8585×2790×3340 |
| Engine model |
|
6BTA5.9 |
