  • 10T Diesel forklift GN100

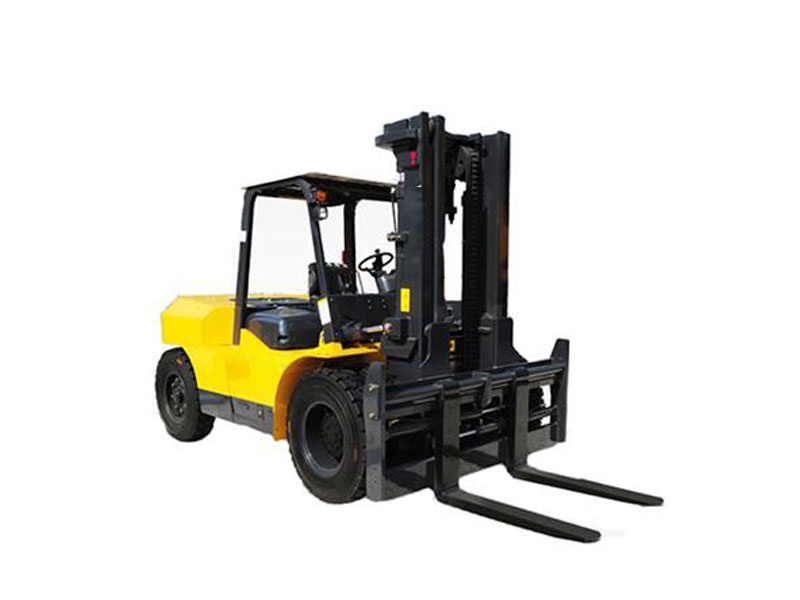

10T Diesel forklift GN100

  • Type:GN100
  • Rated Load:10000KG
  • Load Centre Distance:600mm
  • Engine Type:diesel oil
  • Lift Height:3000mm
  • Features
  • Technical Data
  • Inquiry
Diesel forklift  GN100 Instroduction

Forklift is a transportation vehicle,used for loading and unloading、short distance transport、heavy lifting,is called industrial vehicle by The international organization forStandardization ISO/TC110, used as transport machine, Widely used in national economic  dpartments , for example: the railway station, port, airport, factory, warehouse, etc, is efficient equipment mechanical for loading and
unloading, stacking and short distance transport.

Diesel forklift  GN100 performance feature:

The whole machine adopts big arc streamline modelling,The edge design of the counterweight can be seen from the driver's seat, best visibility when back up.
The control system design  according to the principle of ergonomics ,the direction of the machine can adjust ,wide vision for the driver, good comfort.
The gearbox adopt Japan advanced technology,reliable performance.
No load sensing hydraulic steering and cross cylinder steering system, easy operation;Wide field of door frame design provides drivers with a broad view , the combined type tail lights on canopy guard back, marked clearly provides users with a safe job function.
summary type GN100 unit
rated load 10000 Kg
load centre distance 600 mm
Engine type diesel oil
measure lift height 3000 mm
mast tilt angle (font/back) 6/12 deg
boundary dimension length 5400 mm
width 2230 mm
height 2800 mm
minimum turning radius 3900 mm
property Max. Speed
(full load/empty)
26/28 Km/h
Maximum lifting speed
(full load)
360 mm/sec
maximum gradability 20 %
self weight 12700 kg
underpan tyre front wheel 9.00-20-14PR
rear-wheel 9.00-20-14PR
distance between shafts 2800 mm
unit power Engine adaptable automobile mode GN100
type CY6102-BG
rated power 81/2500 Kw/rpm
