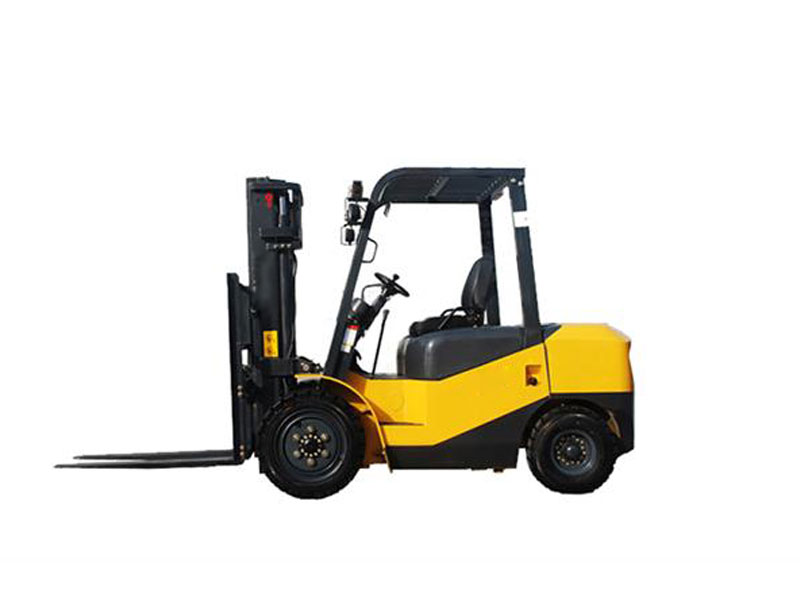

Diesel forklift GN30 Introduction
Forklift is a transportation vehicle,used for loading and unloading、short distance transport、heavy lifting,is called industrial vehicle by The international organization for Standardization ISO/TC110,used as transport machine, Widely used in national economic departments , for example: the railway station, port, airport,factory, warehouse, etc, is efficient equipment mechanical for loading andunloading, stacking and short distance transport.
Diesel forklift GN30 performance feature
Ergonomic design :GN30series forklift with built-in tilt cylinder, High-grade adjustable damping seat to reduce operator’s fatigue,broad vision from it’s door frame.
Damping design:Adopted floating roof rack,Steering axle damping technology,Make the vibration decreased by about 30% when it is wolking,improve operation comfort of the driver.
High quality match the driving part and the hydraulic system, which make the whole car more efficient energy saving efficiency.
Electric system :Intelligent electronic monitoring combination instrument,LED screen, high reliability, Electrical system adopts the waterproof sealing plug structure, improve the safety and reliability.
| summary |
type |
GN30 |
unit |
| rated load |
3000 |
Kg |
| load centre distance |
500 |
mm |
| Engine type |
diesel oil |
|
| measure |
lift height |
3000 |
mm |
| mast tilt angle (font/back) |
6/12 |
deg |
| boundary dimension |
length |
3779 |
mm |
| width |
1260 |
mm |
| height |
2070 |
mm |
| minimum turning radius |
2100 |
mm |
| property |
Max. Speed
(full load/empty) |
19/20 |
Km/h |
Maximum lifting speed
(full load) |
420 |
mm/sec |
| maximum gradability |
20 |
% |
| self weight |
4350 |
kg |
| underpan |
tyre |
front wheel |
28×9-15-14PR |
|
| rear-wheel |
6.50-10-10PR |
|
| distance between shafts |
1700 |
mm |
| unit power |
Engine |
adaptable automobile mode |
GN30 |
|
| type |
C490BPG |
|
| rated power |
40/2650 |
Kw/rpm |
