  • 5.0T Diesel forklift GN50

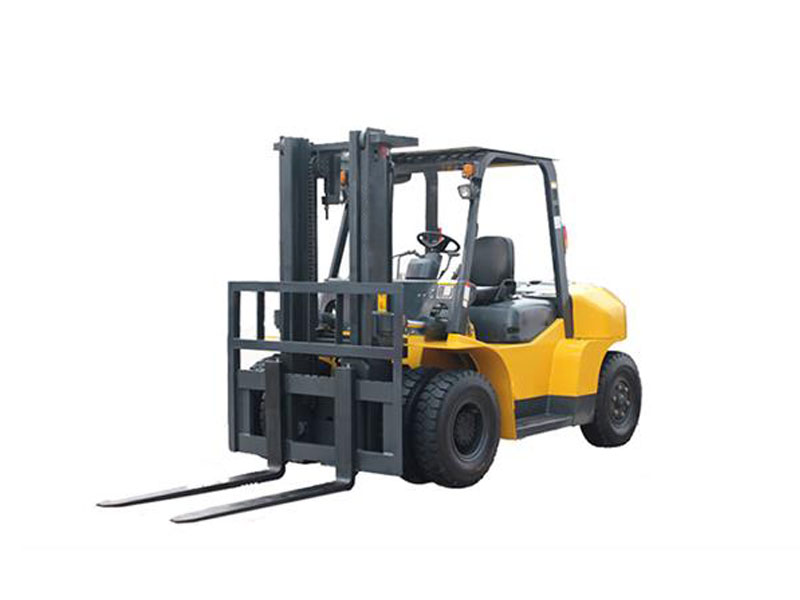

5.0T Diesel forklift GN50

  • Type:GN50
  • Rated Load:5000KG
  • Load Centre Distance:500mm
  • Engine Type:diesel oil
  • Lift Height:3000mm
  • Features
  • Technical Data
  • Inquiry
Diesel forklift GN50 Instroduction

The vehicle appearance  using the latest man-machine engineering design,Comfortable, safe and efficient operation.Using small diameter and adjustable steering wheel and high-grade  seat,the reasonable control system layout,Reduce the labor intensity of operators。Including GN50 - CE have passed the European CE certification,have the qualification for export to Europe.

Diesel forklift GN50 performance feature

Power system:Each models configuration is mature and reliable, powerful, cost-effective.The machine equip  perkin 1104 - d - 44 TA A type engine which meet the Europe Ⅲ  discharge standard,The engine with reliable performance, low noise, low discharge, high power and low fuel consumption.
Heat-removal system:Using new type of large-capacity water tank,Ensure that the vehicle cooling performance. hydraulic system:The hydraulic system adopts double pump  confluence design,Operation of power steering and lifting device separately。Lift goods in the  idle speed ,more stable and reliable
Drive system:equiped Zhongnan transmission which use japanese technology,drive axle and steering axle are  the  mature products of anqing bridge,Stable performance, reliable in quality.
Electric System:adopt high technology  wiring harness and waterproof a plug-in ,multiple fuze layout,ensure the electric system stable and reliable,the hole electric system adopt integrated plate design,Easy to repair and maintenance
Door frame system:Using wide vision design, high sensitivity in operation and lifting stable,Guarantee the machine light and efficient operation,rising oil cylinder equiped the buffer device,the pipe system have safe device,the door frame or goods will not out of contral even the pipe damaged。
summary type GN50 unit
rated load 5000 Kg
load centre distance 500 mm
Engine type diesel oil
measure lift height 3000 mm
mast tilt angle (font/back) 6/12 deg
boundary dimension length 4690 mm
width 1995 mm
height 2500 mm
minimum turning radius 3250 mm
property Max. Speed
(full load/empty)
26/28 Km/h
Maximum lifting speed
(full load)
500 mm/sec
maximum gradability 20 %
self weight 8250 kg
underpan tyre front wheel 8.25-15-14PR
rear-wheel 8.25-15-14PR
distance between shafts 2250 mm
unit power Engine adaptable automobile mode GN50
type CY6102-BG
rated power 81/2500 Kw/rpm
