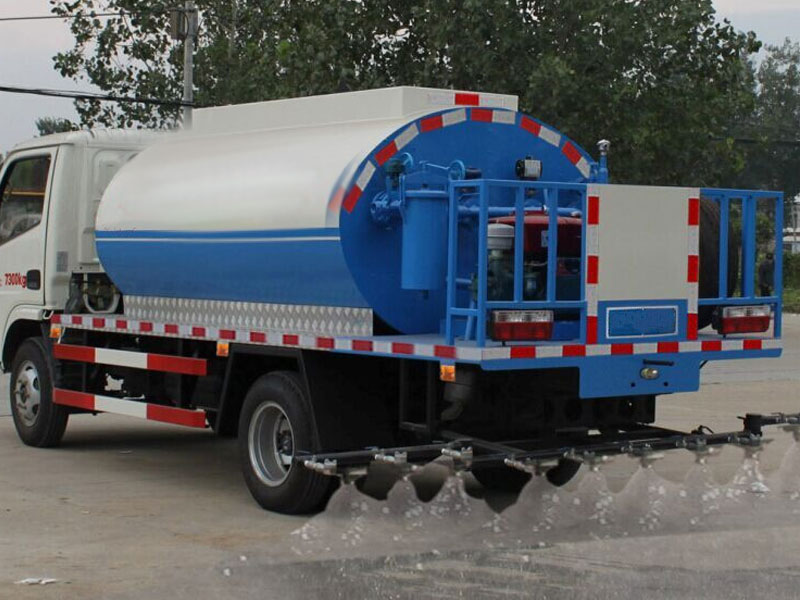

| Dongfeng EQ5072GLQ4 Asphalt/Bitumen Distribution Truck | |||
| Product number | ZL0SP4C801A | Lot | 256 |
| G.V.W(kg) | 7300 | Curb Weight(kg) | 4480 |
| Rated Weight(kg) | 2690, 2625 | Chassis Model | DFA1070SJ35D6 |
| Cab Passenger Numbers | 2, 3 | ||
| App/ Dep(°) | 19/12 | Front Hang/ Rear Hang | 1032/1968 |
| Outer Dimension(mm) | 6300x2080x2400 | Axle Load | 2920/4380 |
| Axle Numbers | 2 | Max Speed | 95 |
| Tire | 7.00-16 | Tire Numbers | 6 |
| Front Tread(mm) | 1,506 | Rear Tread(mm) | 1,500 |
| Wheelbase(mm) | 3300 | Numbers of Springs | 8/9+5 |
| Emission Standard | Euro 3 | Fuel Type | Diesel |
| Engine | Manufacturer | Displacement(ml) | Engine Power |
| 4B28BTCI | Changchai Engine Co., Ltd | 2834 | 70 |
| Special Tank Specification | |||
| Effective volume(m3) | 4 | Transport medium | liquid bitumen |
| Tank Insulation Thickness(mm) | 105 | Density | 900kg/m3 |
| Oval tank outer dimension (length/marcroaxis/minor axis)(mm) | 2900/1900/1500 | Tank Inner Dimension(mm) | 2690/1780/1290 |
| Assistane engine | Changchai 1105(electrical starting) | Power(kw) | 12 |
| Bitumen Pump | KCB300(300litres/minutes) | Spray width: | 4.5-6m, 13 bitumen nuzzles; |
| Heating Mode | conduction oil heating automatically | Burner | G10 Italy |
| Heat-transfer oil pump | 40-25-160 | barrier material | Q235A Carbon Steel |
