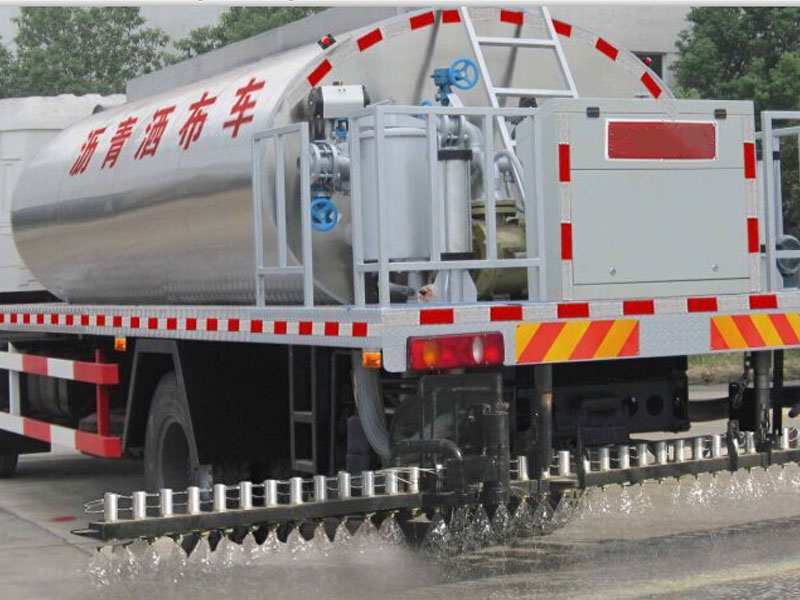

| Dongfeng EQ5100GLQ3 Asphalt/Bitumen Distribution Truck |
|||
| Specification |
|||
| Product Brand |
Dongfeng |
Tanker capacity (m3) |
6 |
| Model |
EQ5100GLQ3 Asphalt Distribution Truck |
Overall Dimensions(mm) |
7080×2300×2650 |
| G.V.W(Kg) |
9750 |
front/rear overhang (mm) |
1180/2100 |
| Rated Weight Kg) |
3955 |
Wheel Base (mm) |
3800 |
| Curb Weight (Kg) |
5600 |
Max. Speed(Km/h) |
80 |
| Cab | 3 |
Axles No. |
2 |
| App./Dep. angel (° ) |
22/10 |
Axle load(Kg) |
3400/6350 |
| Tanker Information: |
|||
| Transport medium |
liquid asphalt |
Density |
900kg/CBM |
| Tanker overall dimension (mm) |
3200*1800*1400 |
Tanker insulation thickness |
50mm |
| Tanker Internal Dimension(mm) |
3100*1700*1300 |
Spray width |
4.5-6M |
| Asphalt Intelligent nozzle No |
30 |
Heatiing Mode |
conduction oil heating automatically |
| Burner |
G10 Italy |
gasoline engine generator |
5.5KW |
| Pump Information: |
|||
| Asphalt Pump model |
QGB680 |
Oil Hydraulic Pump |
CBQ550-L |
| Asphalt Pump Hydraulic drive motor model |
05-110-BD31 |
Hydraulic System |
Proportional Valve EFBG-03-160-HF |
| Control mode |
Siements EQ-39-01 Computer Control |
Heat-transfer oil pump |
40-25-160 |
| Chassis parameter |
|||
| Chassis Model |
EQ1110T9ADJ3AC |
Tires No. |
6 |
| Wheelbase(mm): |
3800 |
Tire Size |
8.25-16 |
| Overall Dimensions(mm) |
6695×2285,2180×2380,2480 |
Front Tread (mm) |
18,311,750 |
| App./Dep. angel (° ) |
22/13 |
Rear Tread(mm) |
16,401,586 |
| Spring No. |
11/9+7,8/10+7 |
Displacement (ml) |
3856 |
| Type of Fuel |
Diesel |
Emission standard |
GB3847-2005,GB17691-2005 Nation Ⅲ |
| Engine Model |
CY4102-C3C |
Power(Kw) |
88 |
