  • 80t/h Asphalt Mixing Plant LB1000

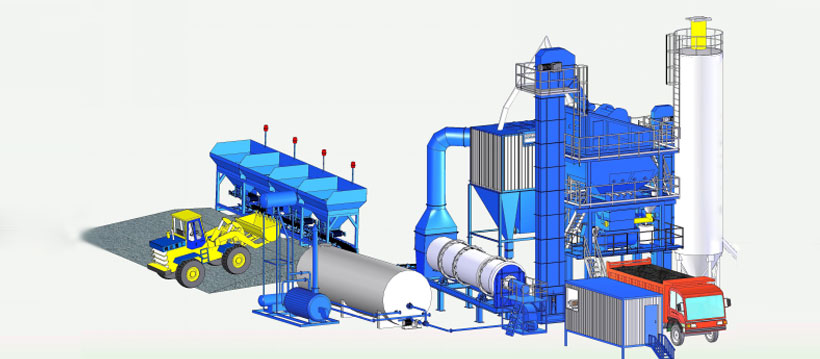

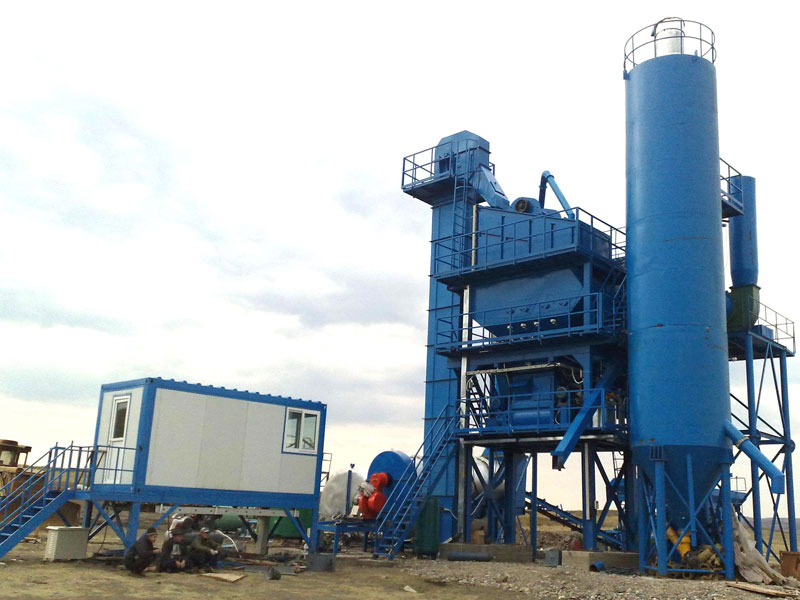

80t/h Asphalt Mixing Plant LB1000

  • Features
  • Technical Data
  • Inquiry

Item Configuration
1、 Feed proportioning system Aggregate bin (with filter net 6.5 m3 )
Frequency control ring belt feeder
Belt 500mmx3.2m
Frequency variation electric roller 1.1kw
Collector belt conveyer
Belt 500mmx26m
Electrical roller 4kw
Vibrator MVE200/3
2、 Oblique belt conveyer Belt 500mmx20m
Electrical roller 4kw
Belt conveyor frame and filter net
3、 Burning system Burner
Oil supply pump, pneumatic control valves, piping and machine frame
Heavy, diesel oil pneumatic control switch, electric heater
Temperature control system
Diesel tank
4、 Hot aggregate hoister Box body, hopper
Chain (plate-type chain)
Gear motor 7.5kw
5、 Vibrating Screen 4LZSF(Four sieve)
6、 Hot aggregate bin Bin body
Level indicator (Heat-resistant)
Cylinder φ100
7、 Aggregate metering bin Metering hopper
Weighing sensor
Cylinder φ100
8、 Asphalt metering box Metering box (Conducting oil heating)
Weighing sensor
Asphalt spray pump (Conducting oil heating)
9、 Mixing main engine Mixing main engine
Reducer motor 18.5kw
Weighing mixing frame
Cylinder 100
10、 Asphalt supply system Asphalt storage tank (Insulation, heating)
Double-layer insulation and heating asphalt piping, valves
Metal hose and thermometer, thermocouple
Weighing three insulation valve (U.S. Technology)
Cylinder 100
Asphalt delivery pump (Conducting oil heating)
Frequency conversion speed regulator
Color display
Air condition
Power supply
