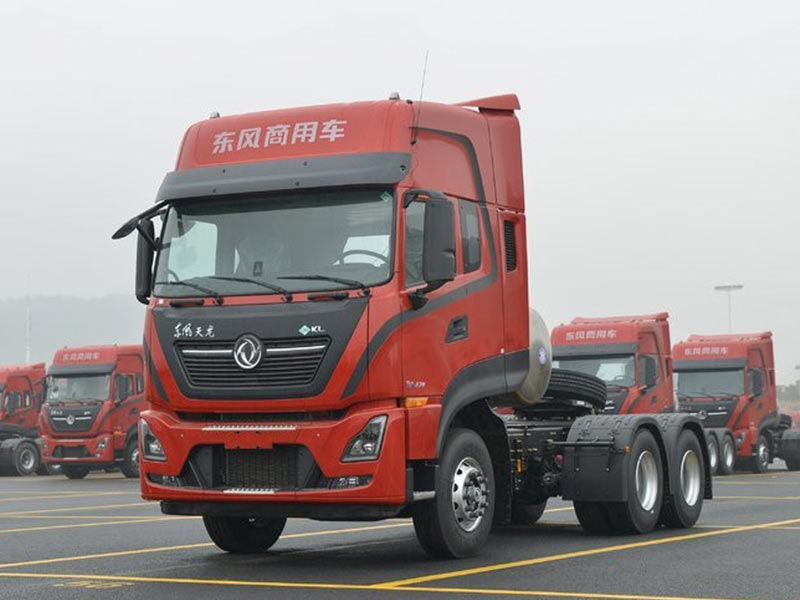

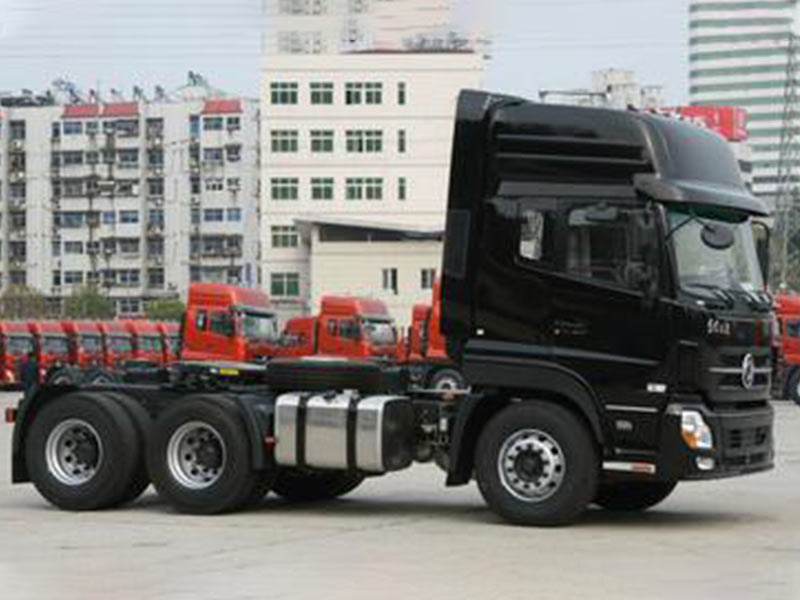

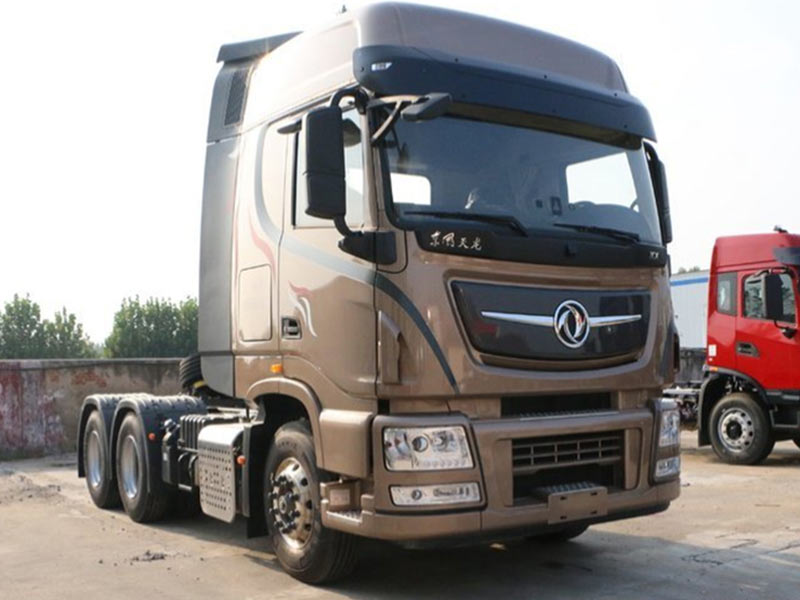

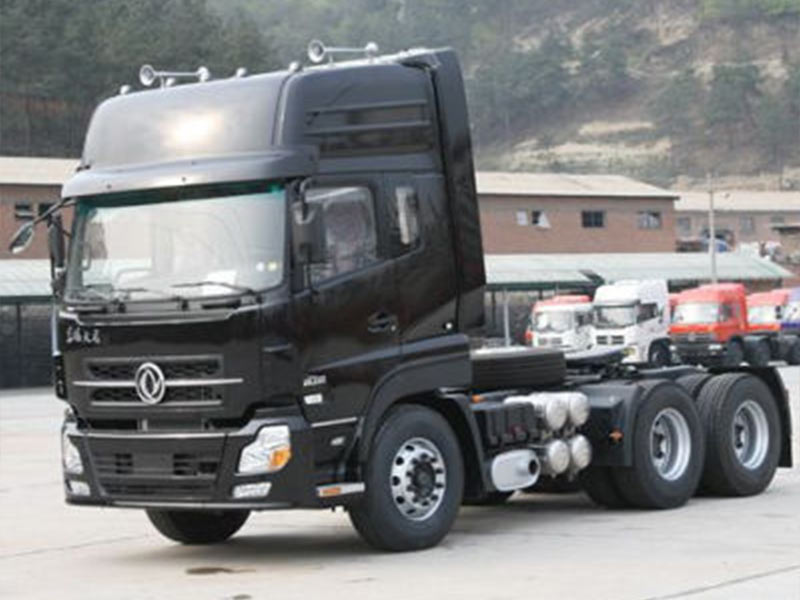

Dongfeng used 6×4 tractor truck
- Horsepower:351 - 450hp
- Capacity (Load):41 - 50t
- Fuel Tank Capacity:200-300L
- Fuel Type/Emission Standard:Diesel/Euro 3
- Maximum Torque(Nm):1500-2000Nm
Dongfeng used 6×4 tractor truck with a maximum load capacity of 50 tons, which is suitable for heavy-duty transportation operations. Its 450hp horsepower engine provides excellent power, and the sturdy and durable chassis provides stability and safety, which can ensure that the vehicle runs smoothly under any road conditions, and is an excellent choice for transporting heavy goods over long distances.
|
Drive mode
|
6×4
|
|
Engine
|
Model
|
Cummins L260 20
|
|
Type
|
6-cylinder in line, turbocharging and inter cooling, mechanical injection pump, built-in EGR
|
|
Max. power(Kw/rpm)
|
250/2200
|
|
Max. torque(N.m/rpm)
|
1350/1400
|
|
Cylinder bore ×Stroke(mm)
|
114×145
|
|
Displacement(ml)
|
8900
|
|
Type OF Fuel
|
Diesel
|
|
Compression ratio
|
(16.6±0.5):1
|
|
No. of valves
|
4
|
|
Cab
|
D310-H1
|
height ceiling, double berth
|
|
Capacity
|
3 persons
|
|
Gearbox
|
Type
|
Fast 12JS180T
|
|
Max. torque(N.m)
|
1800
|
|
Gear ratio
|
15.53 12.08 9.39 7.33 5.73 4.46 3.48 2.71 2.10 1.64 1.28 1.00
|
|
Clutch
|
Φ430mm
|
pull-type diaphragm spring clutch
|
|
Frame H×W× T(mm)
|
300×90×(8+5)
|
|
Frame width 940 (front ), Frame width 810 ( rear )
|
|
No. of spring leaves
|
3/10
|
|
Tyre
|
Size
|
12.00R20
|
|
Air conditioner
|
A/C
|
|
Dimensions
|
Overall dimension (mm)
|
7060 ×2500×3700
|
|
Wheel base (mm)
|
3400+1350
|
|
Front/Rear tread(mm)
|
2027/1820
|
|
App./Dep. angel (°)
|
18/32
|
|
Min. ground clearance(mm)
|
300
|
|
Performance
|
Max. speed(Km/h)
|
98
|
|
Max. gradeability(%)
|
35
|
|
Min. turning diameter(m)
|
16
|
|
Fuel consumption(L/100Km)
|
38
|
|
Mass
|
Curb weight(Kg)
|
9950
|
|
G.V.W (Kg)
|
25000
|
|
Trailer G.V.W(Kg)
|
40000
|
